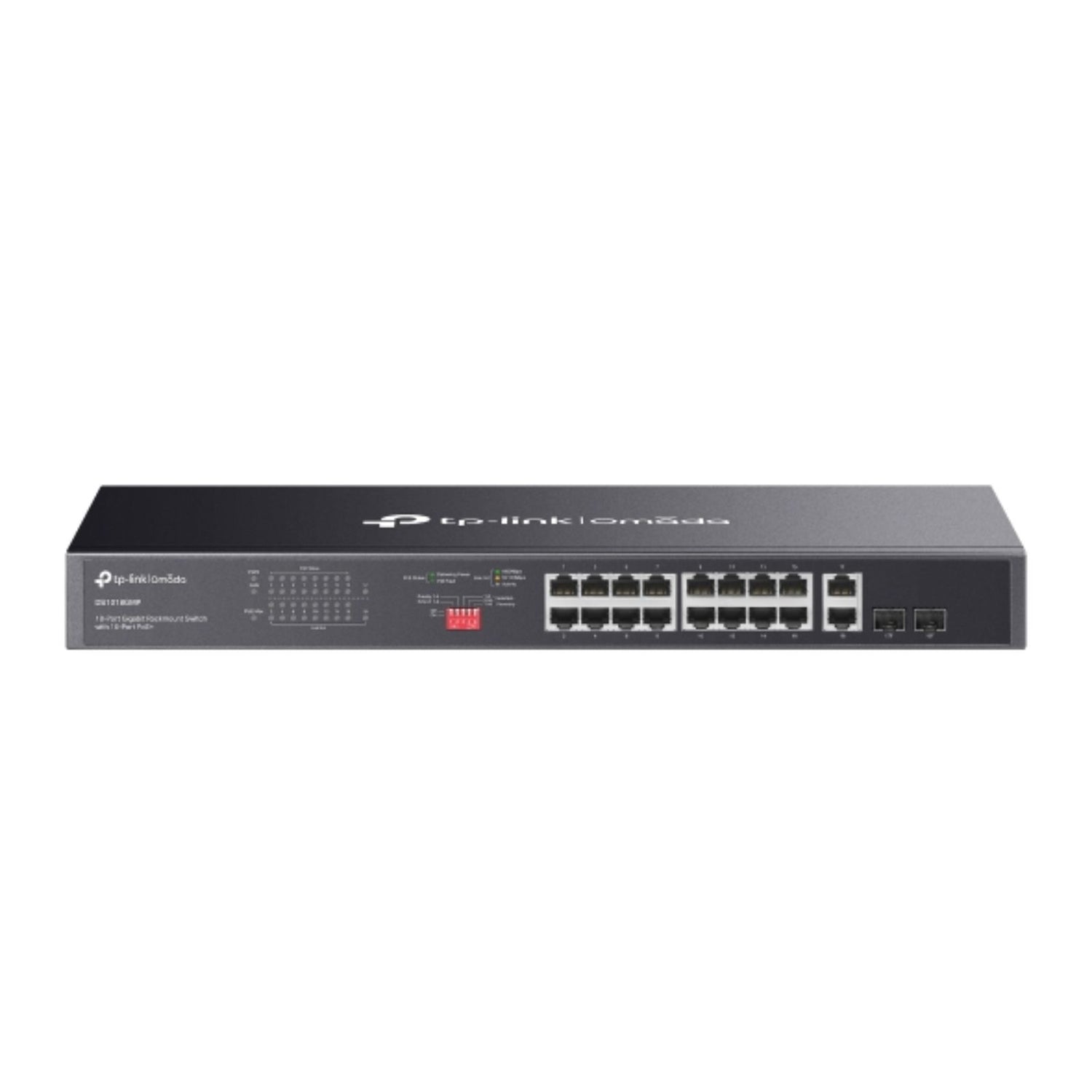

Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+

The Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+ is a robust and high-performance network switch designed for enterprise-grade applications, ideal for powering a large number of PoE devices such as IP cameras, wireless access points, and VoIP phones. With 16 PoE+ ports supporting IEEE 802.3af/at and 2 dedicated Gigabit SFP uplink ports, this switch offers seamless data and power delivery while supporting fibre connectivity for long-distance uplinks.

As part of the TP-Link Omada SDN (Software Defined Networking) platform, this switch enables centralised management via cloud-based Omada controllers, mobile app, or local web interface. It supports advanced features such as 802.1Q VLAN, QoS, IGMP Snooping, and PoE scheduling, making it ideal for scalable and secure business networks. Built into a sturdy metal 1U rackmount case, it’s perfect for integration into server rooms or network cabinets.

Key Features:

• 18 × Gigabit Ports Total – 16 × PoE+ RJ45 ports + 2 × SFP uplink ports

• PoE+ Support – IEEE 802.3af/at compliant, up to 30W per port

• High PoE Power Budget – Total PoE power budget up to 250W

• Omada SDN Integration – Centralised cloud management and control

• Advanced Network Features – VLAN, QoS, IGMP Snooping, Port Mirroring

• PoE Scheduling & Auto Recovery – Efficient power management

• Gigabit SFP Uplink Ports – For high-speed fibre connectivity

• Rackmount Ready – 1U metal case with included mounting brackets

• Fanless or Smart Fan Design – Quiet and efficient thermal control

• Easy Setup & Monitoring – Via web GUI, Omada app, or controller

Specifications:

• Model: TL-SG2218P

• Ports:

  • 16 × 10/100/1000 Mbps RJ45 PoE+ Ports

  • 2 × 100/1000 Mbps SFP Slots

• PoE Standard: IEEE 802.3af/at

• PoE Power Budget: 250W

• Switching Capacity: 36 Gbps

• MAC Address Table: 16K entries

• VLAN Support: 802.1Q VLAN, Port-based VLAN

• QoS: 802.1p/DSCP QoS, Rate Limiting

• L2+ Features: Static Routing, Link Aggregation, IGMP Snooping

• Management: Omada SDN, Web Interface, CLI, SNMP

• Power Supply: Internal

• Mounting: 1U Rackmount

• Dimensions: 440 × 220 × 44 mm

• Operating Temperature: 0–50°C
