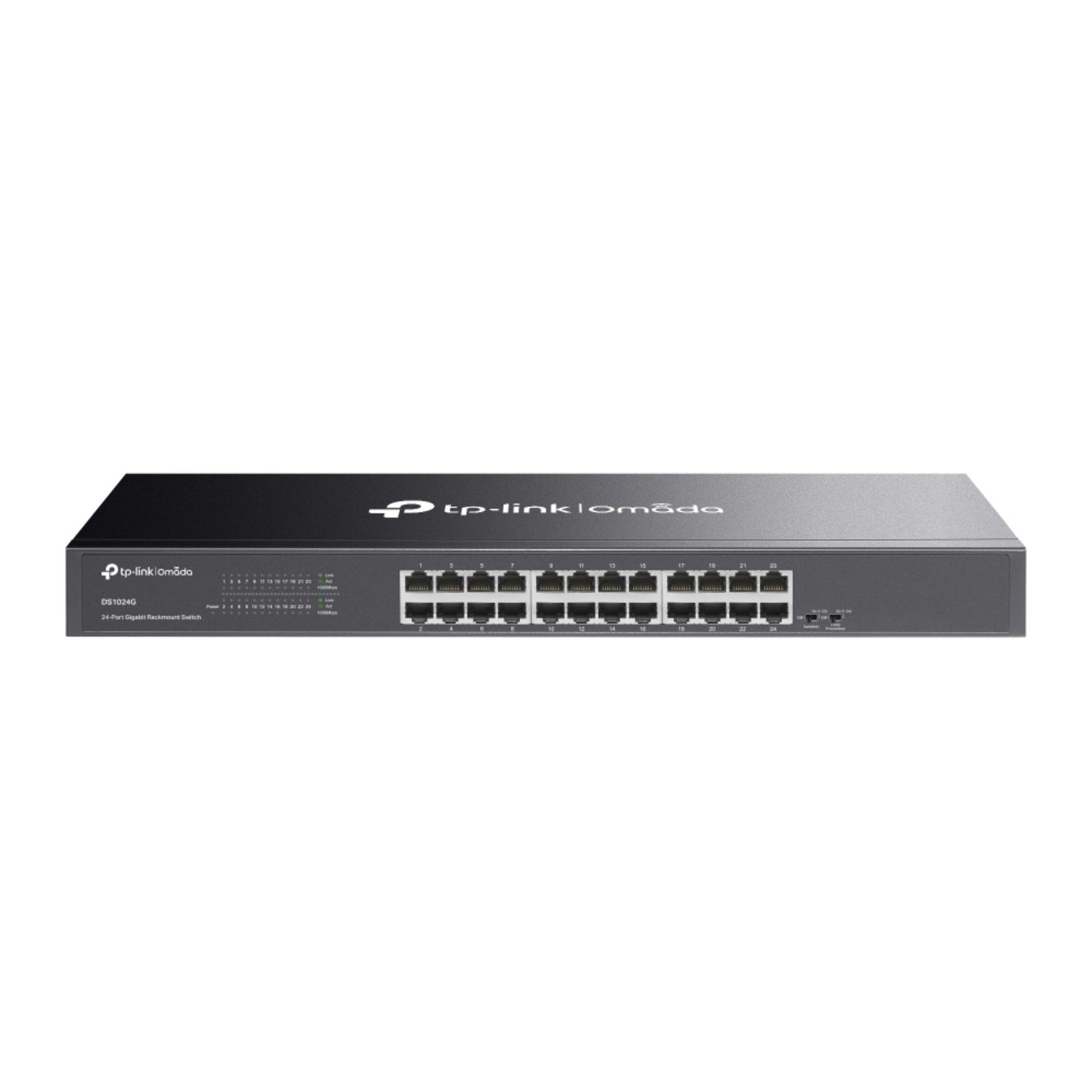

Omada 24-Port Gigabit Rackmount Switch

The Omada 24-Port Gigabit Rackmount Switch is a high-performance, fully managed Layer 2+ switch designed for business-grade networking. It features 24 full Gigabit RJ45 ports, delivering high-speed wired connectivity for desktops, IP cameras, servers, and access points in offices, campuses, and enterprise environments. Engineered for reliability and scalability, it integrates seamlessly into TP-Link’s Omada SDN (Software Defined Networking) platform, enabling cloud-based centralised management and remote monitoring.

With advanced Layer 2+ features including 802.1Q VLAN, QoS, IGMP Snooping, Static Routing, and Access Control, this switch ensures secure, segmented, and optimised traffic flow. Its 1U rackmountable metal housing provides durability and easy integration into standard 19-inch racks, while the fanless or smart-fan design ensures quiet and efficient operation based on the model.

Key Features:

• 24 × 10/100/1000 Mbps RJ45 Ports – Delivers full Gigabit performance across all ports

• Omada SDN Integration – Enables centralised cloud and app-based management

• L2+ Managed Features – Supports VLAN, QoS, IGMP Snooping, Static Routing

• Access & Network Control – Includes ACL, Port Security, Storm Control

• Static Routing Support – Simplifies network segmentation and routing

• Fanless or Smart Fan Cooling – Silent or temperature-based cooling (model-dependent)

• Web UI, CLI, SNMP, and Omada App – Multiple configuration interfaces

• 1U Rackmountable Design – Durable metal housing with included brackets

• Plug-and-Play Setup – Easy installation with advanced options for network pros

Specifications:

• Model: TL-SG2428 or TL-SG3428 (Omada Series)

• Ports: 24 × 10/100/1000 Mbps RJ45 Ports

• Switching Capacity: 56 Gbps

• Forwarding Rate: 41.7 Mpps

• MAC Address Table: 16K

• Packet Buffer Memory: 1.5 MB

• VLAN Support: 802.1Q Tag VLAN, Port-Based VLAN, Voice VLAN, GVRP

• QoS: 802.1p/DSCP QoS, Bandwidth Control, Priority Queues

• L2+ Features: Static Routing, LAG, IGMP Snooping, Port Mirroring

• Security Features: Access Control List (ACL), DHCP Snooping, Loopback Detection

• Management: Omada SDN, Web UI, CLI, SNMP v1/v2c/v3, RMON

• Mounting: 1U Rackmount (brackets included)

• Power Supply: Internal

• Dimensions: 440 × 180 × 44 mm

• Operating Temperature: 0–50°C
