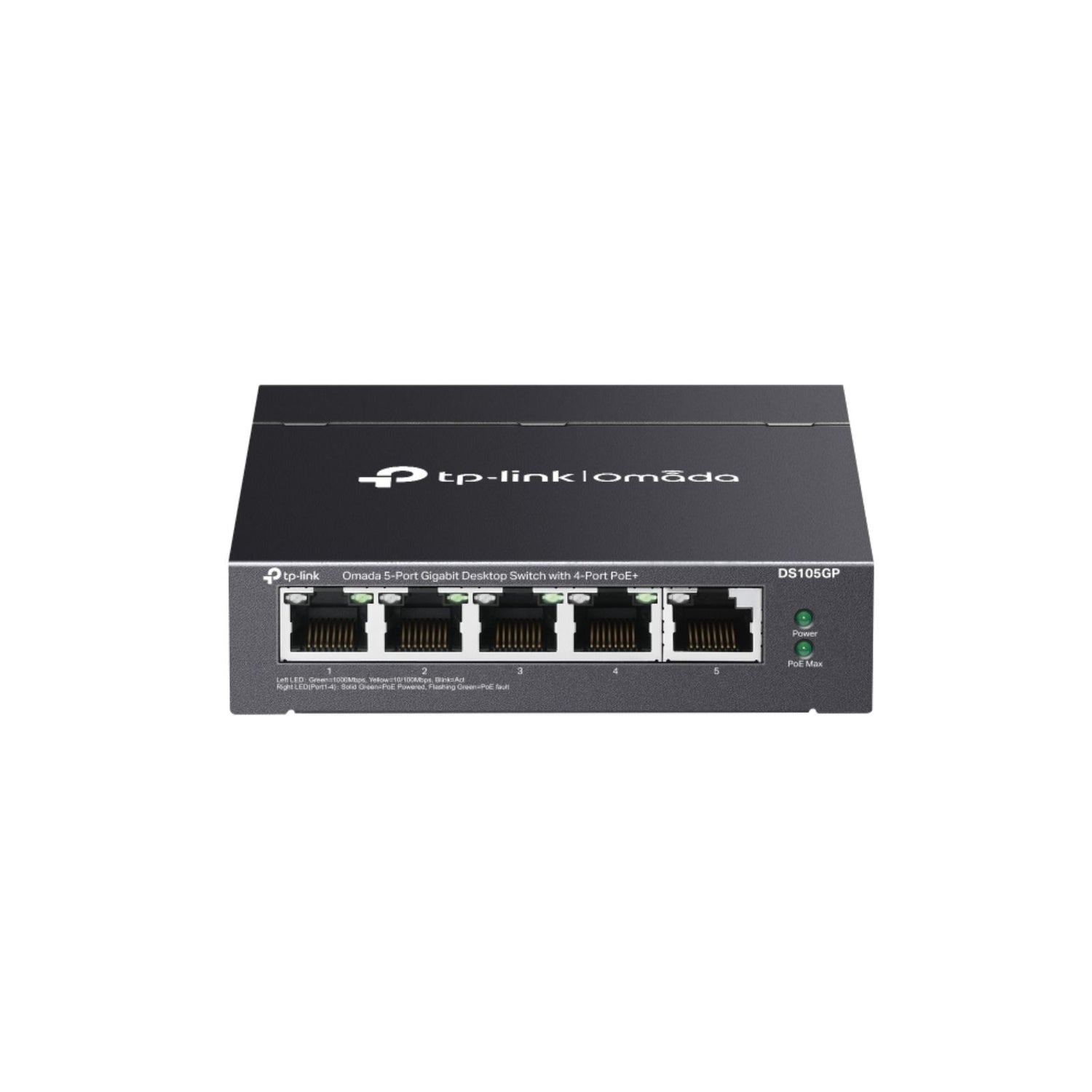

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+

The Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ is a compact, cost-effective solution designed for small offices, retail stores, and home networks requiring both power and data connectivity. With 4 PoE+ ports compliant with IEEE 802.3af/at and 1 Gigabit uplink port, this switch allows users to power devices such as IP cameras, wireless access points, and VoIP phones, while maintaining high-speed network performance.

Fully integrated with TP-Link’s Omada SDN (Software Defined Networking) platform, this switch enables centralised cloud management, remote monitoring, and intelligent features such as PoE scheduling and auto recovery. Designed for silent operation with a durable metal chassis, it’s ideal for desktop or wall-mounted installations where space is limited and reliability is essential.

Key Features:

• 5 × Gigabit RJ45 Ports – 4 with PoE+ support, 1 uplink

• PoE+ Compliant – Supports IEEE 802.3af/at, delivering up to 30W per PoE port

• PoE Budget – Total PoE power budget of up to 65W

• Omada SDN Support – Centralised cloud or local management via controller or app

• Advanced Features – VLAN, QoS, IGMP Snooping, PoE Scheduling

• PoE Auto Recovery – Automatically restarts unresponsive PoE devices

• Fanless Metal Housing – Silent operation, ideal for noise-sensitive environments

• Plug-and-Play Setup – No complex configuration needed

• Compact Desktop Design – Also wall-mountable for flexibility

Specifications:

• Model: TL-SG105PE

• Ports:

  • 4 × 10/100/1000 Mbps RJ45 PoE+ Ports

  • 1 × 10/100/1000 Mbps RJ45 Uplink Port

• PoE Standard: IEEE 802.3af/at

• PoE Budget: 65W total

• Max PoE Power Per Port: 30W

• Switching Capacity: 10 Gbps

• MAC Address Table: 2K entries

• VLAN Support: 802.1Q VLAN, Port Isolation

• QoS: 802.1p/DSCP QoS

• Management: Omada Controller, Web UI, Omada App

• Mounting: Desktop or wall-mountable

• Power Supply: External power adapter

• Dimensions: 100 × 98 × 25 mm

• Operating Temperature: 0–40°C
