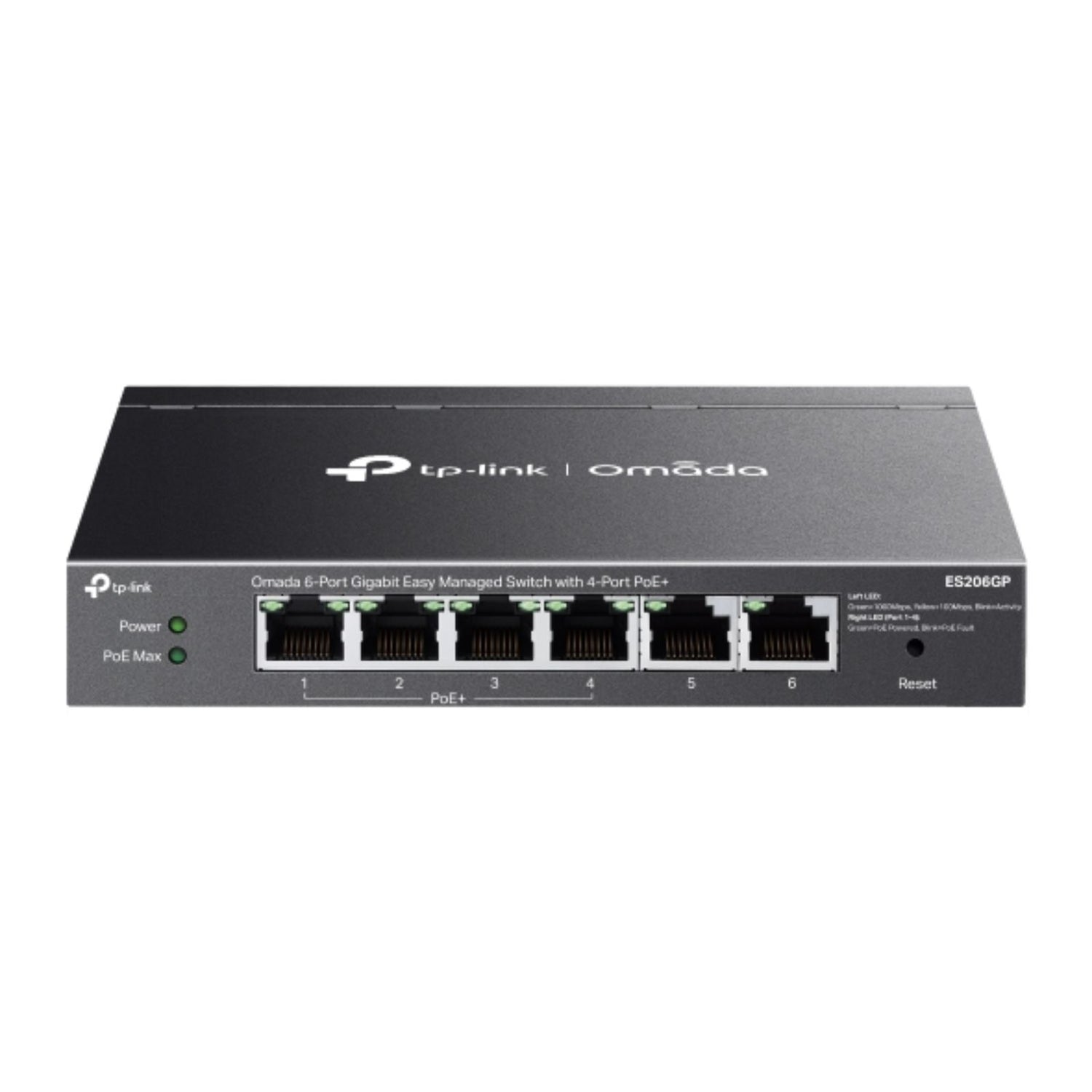

Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+

The Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ is an efficient, high-performance networking solution designed for small to medium business networks. It features 6 Gigabit ports—4 of which support IEEE 802.3af/at PoE+—providing power and data through a single cable to compatible devices such as IP cameras, wireless access points, and VoIP phones. Seamlessly integrated into TP-Link's Omada SDN (Software Defined Networking) platform, this switch supports centralised cloud management, enabling remote configuration, monitoring, and troubleshooting.

The switch features advanced management capabilities through a user-friendly web interface and Omada app, allowing quick setup, VLAN configuration, QoS prioritisation, and network monitoring. With a compact, fanless metal housing, it operates silently and reliably in any office or commercial environment.

Key Features:

• 6 × Gigabit RJ45 Ports – Ensures high-speed wired connections

• 4 × PoE+ Ports – Supplies up to 30W per port, with a total PoE power budget up to 67W

• Easy Management – Manage via Omada App, Web UI, or Omada Cloud Controller

• Centralised Cloud Management – Part of the Omada SDN for unified network control

• PoE Auto Recovery – Automatically reboots unresponsive connected devices

• 802.1Q VLAN Support – Enhances network segmentation and security

• QoS for Traffic Prioritisation – Ensures smooth voice and video transmission

• Compact Fanless Design – Silent operation, ideal for workspaces

• Plug-and-Play – No complex configuration required for basic use

Specifications:

• Model: TL-SG2006P

• Ports:

  • 6 × 10/100/1000 Mbps RJ45 Ports

  • 4 × PoE+ Ports (Port 1–4)

• PoE Standard: IEEE 802.3af/at

• PoE Budget: 67W total

• Switching Capacity: 12 Gbps

• MAC Address Table: 8K entries

• VLAN: 802.1Q VLAN, Port-based VLAN

• QoS: 802.1p/DSCP QoS, Bandwidth Control

• Management: Web Interface, Omada App, Omada Controller

• Mounting: Desktop or wall-mountable

• Power Supply: External power adapter

• Dimensions: 158 × 101 × 25 mm

• Operating Temperature: 0–40°C
