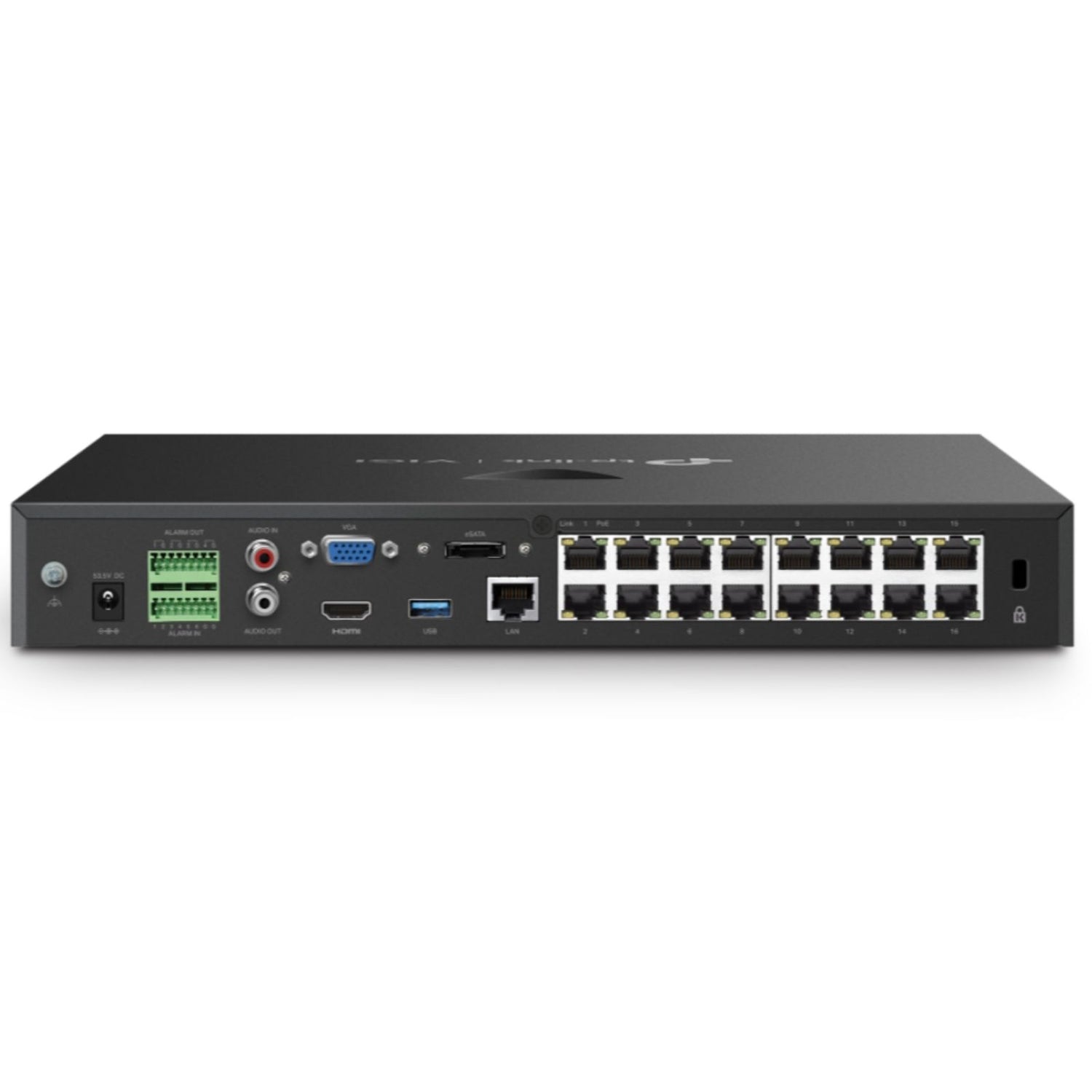

VIGI 16 Channel PoE+ Network Video Recorder | 16MP

The VIGI 16 Channel PoE+ Network Video Recorder is a powerful, user-friendly surveillance management hub for your VIGI camera system. Supporting up to 16 channels with 2MP decoding capacity and 4K HDMI video output, it enables sharp, clear monitoring on local displays. Built-in 16-channel PoE+ ports simplify installation, providing data and power over a single cable while reducing infrastructure costs. With advanced H.265+ compression, extended recording durations, and compatibility with VIGI and ONVIF cameras, this NVR is ideal for small businesses, warehouses, schools, and retail environments requiring reliable, scalable video surveillance management. Intelligent VIGI security features, remote viewing via the VIGI app, and event-based notifications ensure your site stays protected 24/7 with easy playback and smart search functions.

Key Features:

✅ 16 Channel PoE+ (802.3af/at) for simple plug-and-play camera deployment
✅ 4K HDMI Video Output for crystal-clear local monitoring
✅ 16 Channel @ 2MP Decoding Capacity for simultaneous multi-channel live view and playback
✅ H.265+ Compression for reduced storage and bandwidth consumption
✅ Supports 1 HDD up to 10TB for long-term recording
✅ Intelligent Event Management with motion, tampering, and advanced VIGI detections
✅ Remote Viewing via VIGI app and VIGI Security Manager software
✅ ONVIF Compatibility for integration with third-party cameras
✅ Smart Search and Playback to quickly find critical events
✅ Rack or Desktop Mountable for flexible deployment

Specifications:

• Video Input: 16 channels IP camera inputs

• Decoding Capacity: 16 channels @ 2MP, 8 channels @ 4MP, 4 channels @ 8MP

• Video Output: HDMI (4K), VGA

• Audio: 1 input, 1 output (RCA)

• Compression: H.265+/H.265/H.264

• HDD: 1 × SATA interface, supports up to 10TB

• Network Interface: 1 × RJ45 10/100/1000 Mbps

• PoE Ports: 16 × PoE+ (Max 30W/port, total budget 200W)

• USB Ports: 2 × USB 2.0, 1 × USB 3.0

• Alarm I/O: 4 in, 1 out

• Power Supply: 100–240V AC, 50/60Hz

• Power Consumption: ≤15W (without HDD and PoE load)

• Operating Temperature: –10 °C to 55 °C

• Dimensions: Approx. 385 × 315 × 52 mm

• Weight: ~3.5 kg (without HDD)
