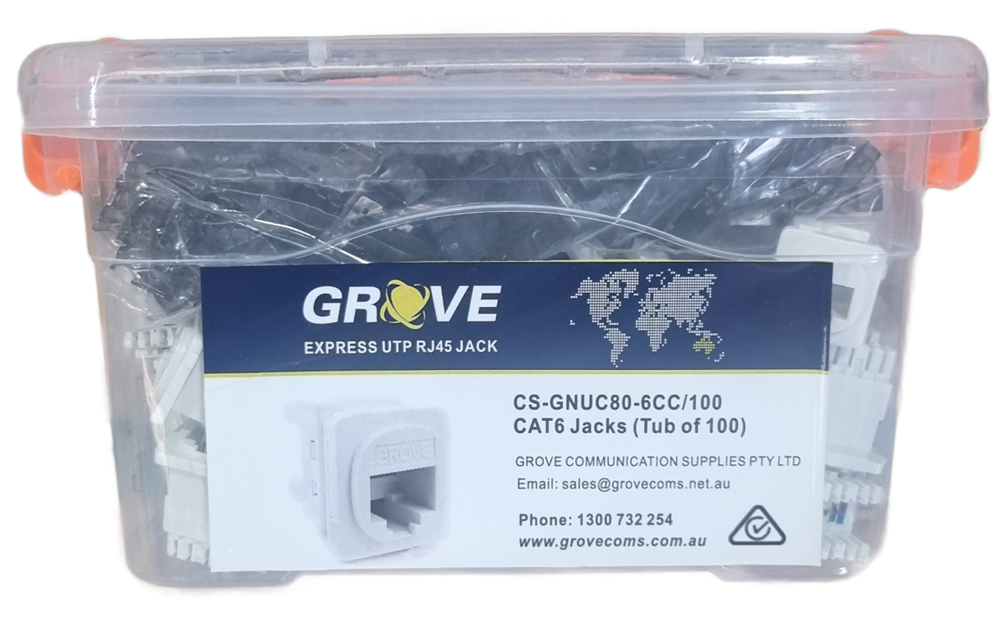

Cat6 Modular Jacks | Tub of 100 | White
Cat6 Modular Jacks | Tub of 100 | White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We deliver Australia wide.
- Click & collect is available from our 3 warehouses.
- Delivery prices may differ depending what time you order and where you are delivering too
Cat6 Modular Jacks | Tub of 100 | White
About this Product
The Grove Cat6 Modular Jack is an installer-ready RJ45 connectivity solution designed for professional Category 6 structured cabling systems. Suitable for Gigabit Ethernet, Fast Ethernet, voice, video and general data applications, it delivers dependable connectivity across commercial, residential and enterprise networks.
Featuring a 180-degree cable entry with 110 and KRONE IDC compatibility, the modular jack accepts 23–28 AWG solid cable for flexible installation. Its compact design suits most Mech 30 Series faceplates, making it an ideal choice for electricians, data cablers and communications installers.
For faster, more consistent installation, use with the Grove 4 Pair Termination Tool, designed to assist with conductor seating and trimming.
Key Features
- Cat6 UTP RJ45 modular connectivity
- Suits most Mech 30 Series faceplates
- 180-degree cable entry
- 110 and KRONE IDC compatible
- Accepts 23–28 AWG solid cable
- Colour-coded conductor termination
- Durable polycarbonate housing
- Phosphor-bronze contacts
- Gold-plated RJ45 contact area
- Rated for more than 2,000 mating cycles
- Suitable for Ethernet, voice, video and data applications
- Recommended for use with the Grove 4 Pair Termination Tool
- Available as Single, Bag of 10 or Tub of 100
Specifications
|
Specification |
Details |
|
Brand |
Grove |
|
Product Code |
CS-GNUC80-6CC |
|
Product Type |
Cat6 RJ45 UTP Modular Jack |
|
Cable Entry |
180° |
|
IDC Compatibility |
110 & KRONE |
|
Cable Compatibility |
23–28 AWG solid cable |
|
Housing |
Polycarbonate |
|
PCB |
FR-4, UL 94 V-0 |
|
Current Rating |
1.5 A maximum |
|
Dielectric Strength |
1,000 V RMS for 1 minute |
|
Operating Temperature |
-20°C to +70°C |
|
Relative Humidity |
10–90%, non-condensing |
|
Insertion Life |
>2,000 mating cycles |
|
Overall Face |
22.9 × 22.9 mm |
|
Overall Depth |
26.7 mm |
|
Body Height |
16.73 mm |
|
Faceplate Compatibility |
Most Mech 30 Series faceplates |
|
Pack Options |
Single / Bag of 10 / Tub of 100 |
|
Recommended Tool |
Grove 4 Pair Termination Tool |
Technical and dimensional specifications are based on the supplied Grove data sheet.
Applications
- Commercial and office structured cabling
- Residential data outlets and home networks
- Gigabit Ethernet installations
- Fast Ethernet networks
- Voice and video connectivity
- Security and communications networks
- Wall plates and data outlets
- Patch panels and consolidation points
- Education and healthcare facilities
- New network installations and upgrades
