Cat6 Keystone Panel Jacks | Bag of 12 | Orange
About this Product

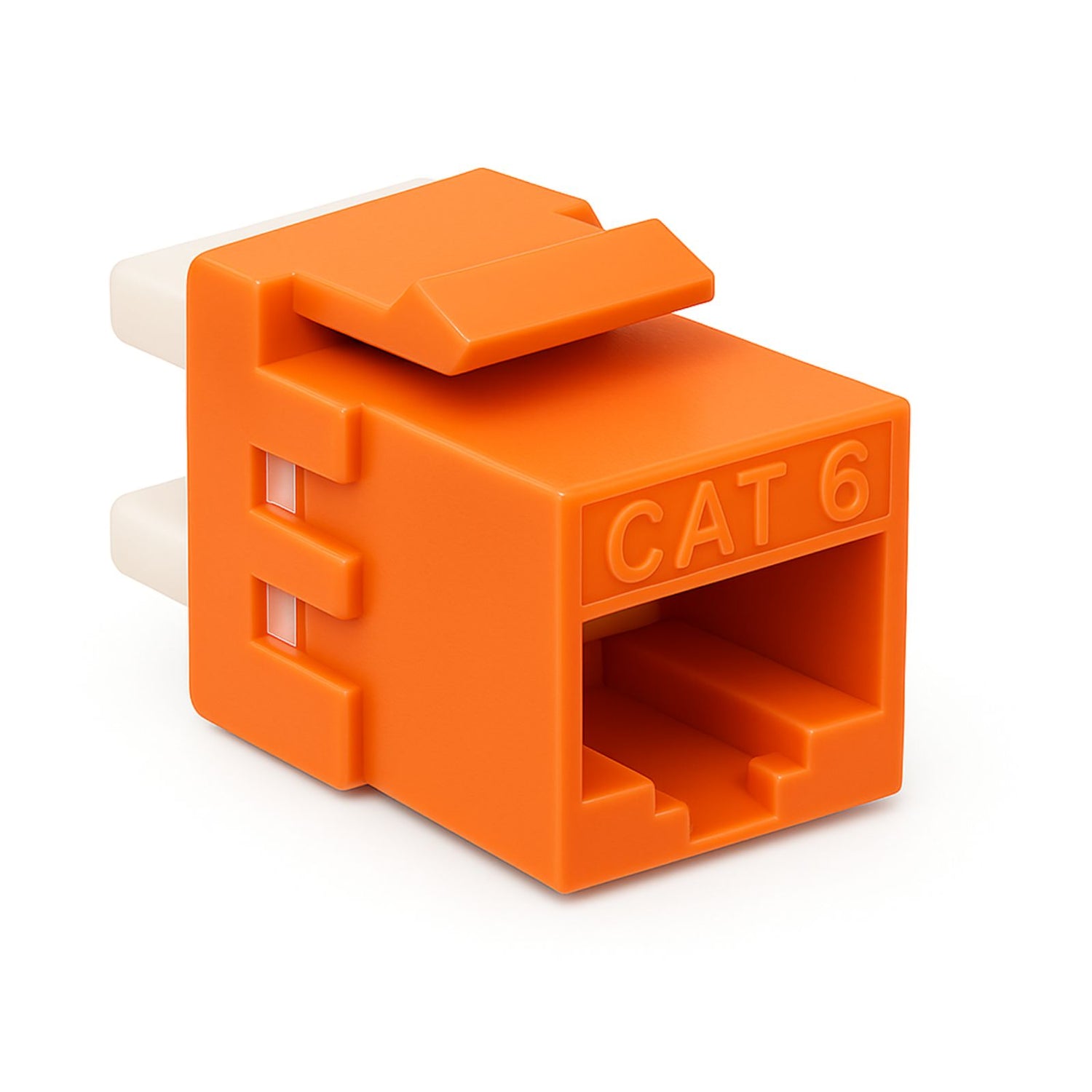

The Grove Cat6 Keystone Panel Jacks (Bag of 12, Orange) are precision-engineered RJ45 connectors designed for high-performance data transmission in structured cabling systems. These Cat6-rated jacks ensure exceptional Gigabit Ethernet performance with minimal crosstalk and superior conductivity. Each contact features 50 µin of gold plating for maximum durability, corrosion resistance, and long-term signal integrity. The orange housing provides easy circuit identification and colour-coded organisation, making it ideal for complex network installations. Compatible with Grove patch panels, wall plates, and surface boxes, this 12-pack offers a reliable and efficient solution for professional cabling projects.
Key Features:
- Pack of 12 high-performance Cat6 RJ45 keystone jacks
- Standard keystone format fits Grove Express and Elite panels
- Supports Gigabit Ethernet and Cat6 channel performance
- 50 µin gold-plated contacts for superior conductivity and extended lifespan
- Dual IDC (110-style) termination for fast, secure connections
- High-impact, flame-retardant orange housing (UL-94 V-0 rated)
- Suitable for 22–24 AWG solid conductors
- Withstands ≥ 750 mating cycles and > 150 re-terminations
- Snap-in installation with clear port labelling
- Fully compliant with AS/NZS ISO/IEC 11801.2:2019 cabling standard
Specifications:
| Parameter | Value |
|---|---|
| Model / Part Number | Grove Cat6 Keystone Panel Jack (Orange) — Pack 12 |
| Connector Type | RJ45 (8P8C) female |
| Category Rating | Cat6 (component-level performance) |
| Termination Type | Dual IDC (110 style) |
| Wire Gauge Supported | 22–24 AWG solid |
| Contact Material | Phosphor bronze with 50 µin gold plating over 70–100 µin nickel |
| Housing Material | Flame-retardant ABS / polycarbonate, UL-94 V-0 rated |
| PCB Material | FR-4, 1.6 mm |
| Mating Cycles | ≥ 750 |
| Re-terminations | > 150 |
| Contact Resistance | ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 100 VDC |
| Dielectric Strength | 1000 V RMS @ 60 Hz for 1 minute |
| Retention Force | ≥ 50 N for 60 seconds |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Colour | Orange |
| Pack Quantity | 12 pcs |
Applications:
- Structured cabling systems in offices, schools, and data centres
- Colour-coded installations for network segmentation or management
- Use in Grove patch panels, wall plates, and modular enclosures
- Gigabit Ethernet and VoIP applications
- New builds, upgrades, and maintenance of Cat6 networks
