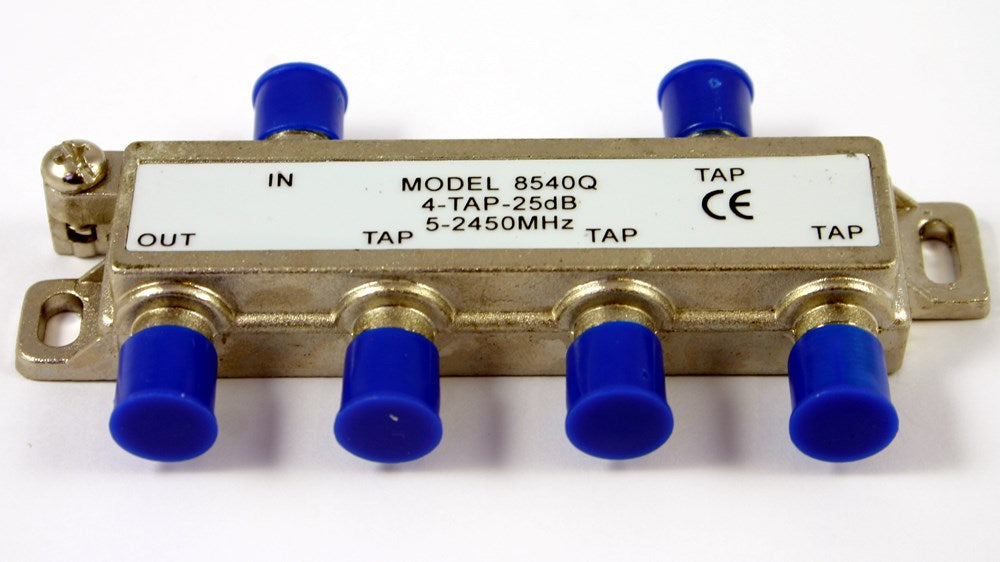

Directional Coupler 4 Tap 25db
About this Product
The Directional Coupler 4 Tap 25 dB is a premium RF signal distribution component designed to deliver a precise 25 dB tap-off while allowing the main signal to pass with minimal insertion loss. Engineered for high-performance CATV, MATV, SMATV, broadband, and RF distribution networks, it ensures reliable signal management and consistent performance across a wide frequency range.
Manufactured with a robust, corrosion-resistant metal housing and precision-engineered connectors, this directional coupler offers excellent shielding, low VSWR, and high port isolation. Its compact design makes installation simple in both indoor and outdoor communication systems where dependable signal distribution is essential.
Key Features
- High-performance 25 dB tap attenuation for accurate signal distribution.
- Four-tap configuration for efficient multi-point RF signal delivery.
- Low insertion loss on the through line.
- High port isolation to minimise signal interference.
- Wide operating frequency range suitable for CATV and broadband applications.
- Excellent return loss and low VSWR for stable signal quality.
- Die-cast metal housing with high electromagnetic shielding.
- Corrosion-resistant finish for long service life.
- Compact design for easy installation.
- Suitable for professional and commercial RF distribution systems.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Directional Coupler |
| Configuration | 4 Tap |
| Tap Attenuation | 25 dB |
| Impedance | 75 Ω |
| Frequency Range | 5–1000 MHz (typical) |
| Through Line Insertion Loss | Low |
| Return Loss | High |
| Port Isolation | High |
| Connectors | F-Type Female |
| Housing Material | Die-cast zinc alloy |
| Shielding Effectiveness | ≥100 dB |
| Operating Temperature | -20 °C to +60 °C |
| Mounting | Wall or cabinet mount |
Applications
- CATV distribution networks
- MATV and SMATV systems
- Broadband cable networks
- Commercial buildings
- Apartment complexes
- Hotels and hospitality installations
- Educational campuses
- Hospitals and healthcare facilities
- RF communication systems
- Signal balancing and distribution networks
