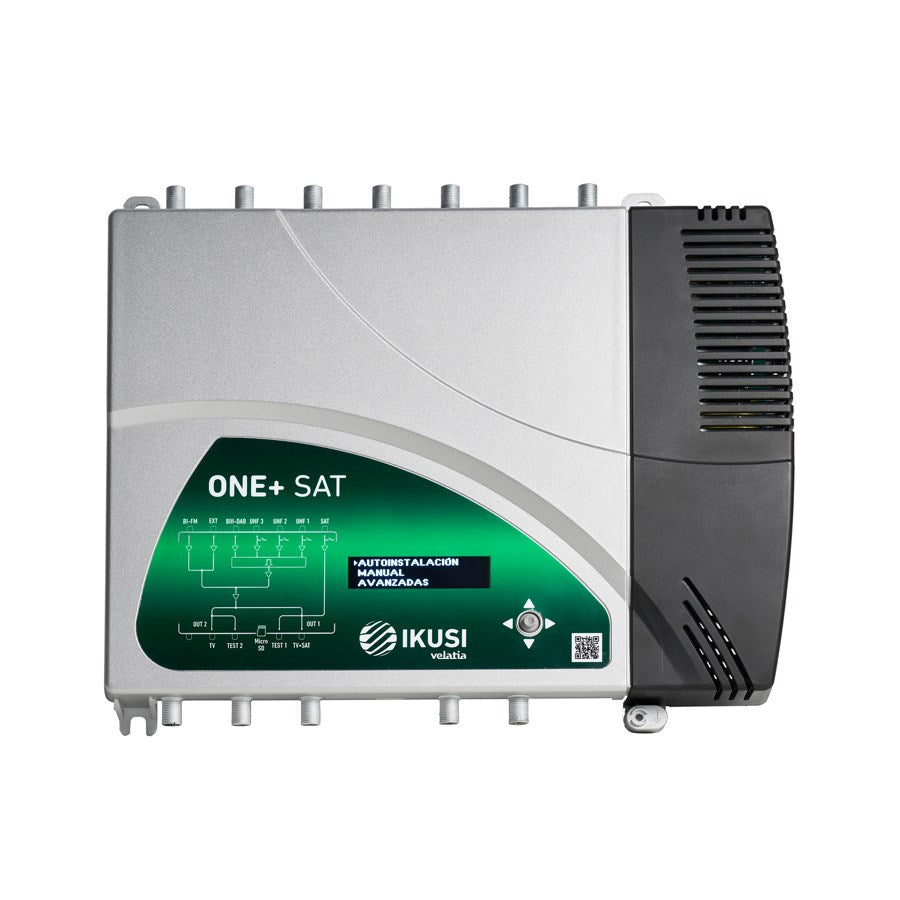

Programmable Digital Amplifier FTA & SAT

The Programmable Digital Amplifier FTA & SAT is a professional-grade amplifier designed to process, filter, equalise, and amplify both Free-to-Air (FTA) terrestrial and satellite (SAT-IF) signals within a single compact unit. Perfect for MATV and SMATV headend systems in residential complexes, hotels, hospitals, and commercial buildings, this device allows programmable control over each channel and frequency band, ensuring reliable and high-quality signal distribution throughout the entire installation.

Equipped with channel-selective digital filtering, auto gain control, and programmable equalisation, this amplifier enhances signal clarity, removes unwanted noise, and ensures a balanced output level across all outlets. Compatible with UHF, VHF, FM, and SAT-IF inputs (47–2400 MHz), it offers unmatched versatility for combined terrestrial and satellite installations.

Key Features:

• Dual Signal Processing: Amplifies both terrestrial (FTA) and satellite (SAT-IF) signals.

• Programmable Filters: Channel-selective amplification for precise control and reduced interference.

• Wide Frequency Range: 47–862 MHz (FTA) and 950–2400 MHz (SAT-IF).

• Auto Level Control (ALC): Maintains consistent output regardless of fluctuating input signals.

• Adjustable Gain & Equalisation: Fine-tune UHF, VHF, and SAT levels to match system requirements.

• Multiple Inputs: Separate inputs for VHF/UHF, FM, and SAT signals.

• User Interface: Simple programming via LCD screen, onboard buttons, or USB/PC software (model dependent).

• High Output Capability: Suitable for feeding multiswitches or long cable runs in large buildings.

• Shielded Housing: Reduces RF interference and ensures durability in professional installations.

• Foxtel Compatible: Meets industry standards for satellite signal distribution.

Specifications:

• Frequency Range:

  • Terrestrial: 47–862 MHz

  • Satellite IF: 950–2400 MHz

• Gain:

  • FTA: Up to 50 dB

  • SAT: Up to 35 dB

• Output Level:

  • FTA: Up to 120 dBμV

  • SAT: Up to 110 dBμV

• Inputs:

  • 1x FM

  • 1x VHF

  • 1x UHF

  • 1x SAT-IF (or Quattro LNB input)

• Programmable Filters: 32–48 (model dependent)

• Noise Figure: < 5 dB

• Impedance: 75 Ohm

• Connectors: F-Type

• Power Supply: 230V AC or external 12–24V DC

• Power Consumption: < 10 W

• Control Interface: LCD display, keypad or PC via USB (varies by model)

• Dimensions: Approx. 270 mm (L) x 180 mm (W) x 60 mm (H)

• Operating Temp: -10°C to +50°C

• Mounting: Wall or cabinet mount

• Compliance: CE, RoHS, Foxtel-compatible
