100 Pair External MDF L/H Enclosure
About this Product

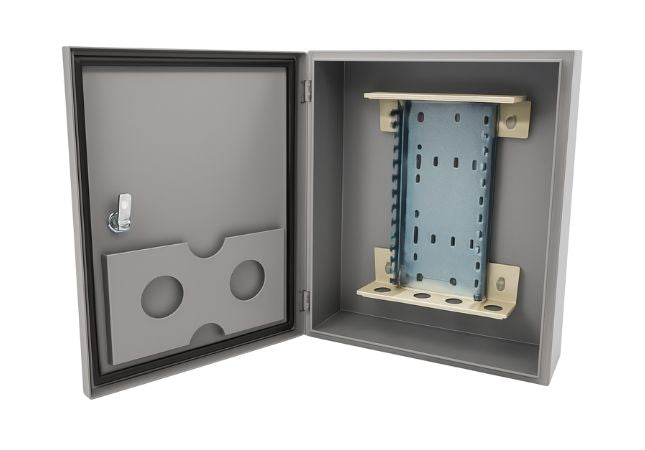

The Grove Communications IP55 Rated 100 Pair MDF Enclosure is a robust, weather-resistant main distribution frame designed for secure termination of up to 100 copper pairs in external environments. Ideal for installations at or beyond a network boundary, this enclosure provides reliable cable protection, organised termination, and secure access for telecommunications and data networks.
Manufactured from durable powder-coated steel, the enclosure is IP55 rated to protect against dust ingress and low-pressure water jets, ensuring dependable outdoor performance. It is supplied complete with a key lock, 11-way backmount frame pre-fitted, and frame surround, allowing for straightforward installation.
The cabinet can be configured as either left-hand or right-hand hinged, and supports both wall surface mounting and recessed installations for flexibility on site.
For optimal performance, use with Grove 10 Pair Disconnect Modules and/or Grove Cat6 8 Pair Consolidation Modules.
Key Features
- IP55 Rated – Suitable for external installations
- 100 Pair Capacity – Supports up to 100 copper pairs
- Left or Right Hinged Options – Flexible access configuration
- Supplied Complete – Includes key lock, 11-way backmount frame & surround
- Wall or Recess Mounting – Versatile installation options
- Powder-Coated Steel Construction – Durable and corrosion-resistant
- Secure Access – Lockable door for network protection
- Organised Cable Management – Designed for structured termination
Specifications
| Specification | Details |
|---|---|
| Capacity | 100 Pairs |
| Ingress Protection | IP55 |
| Material | Powder-coated steel |
| Mounting Options | Wall surface mount or recessed |
| Door Options | Left-hand or Right-hand hinged |
| Lock Type | Key lock supplied |
| Backmount Frame | 11-way (pre-fitted) |
| Dimensions (H × W × D) | 405 mm × 304 mm × 93 mm |
| Application | External telecom and data installations |
Part Numbers
- EV-GN0005/L – Left Hand Hinged
- EV-GN0005/R – Right Hand Hinged
- EV-GN0006 – 1000 Pair Record Book (sold separately)
Applications
- Network boundary installations
- Telecommunications distribution points
- External copper cable termination
- Data and voice infrastructure
- Commercial and industrial network deployments
- Structured cabling systems
