10M SC-LC SM OS1/OS2 Simplex Patch Lead

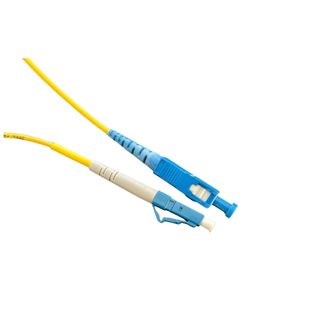

The 10 m SC-LC SM OS1/OS2 Simplex Patch Lead is a high-performance single-mode fibre optic cable designed for reliable long-distance connectivity in telecommunications, data centres, and structured cabling systems. Featuring an SC connector on one end and an LC connector on the other, this patch lead ensures seamless integration between patch panels, optical transceivers, and network devices.

Built with 9/125 µm single-mode fibre, it supports high-bandwidth data transmission over extended distances with minimal signal loss. The simplex design contains a single fibre strand, ideal for one-way optical links. Precision-polished ceramic ferrules deliver low insertion loss and high return loss, guaranteeing stable and consistent optical performance.

The durable yellow LSZH or PVC jacket provides flexibility, protection, and easy identification of single-mode fibre. With a 2 mm outer diameter, this 10 m patch lead is simple to route and manage, making it suitable for high-density rack and cabinet installations.

Key Features

• SC to LC connector configuration for versatile fibre connections
• OS1/OS2 single-mode fibre for long-distance, high-speed transmission
• Simplex design with a single fibre strand
• 9/125 µm fibre core for high-performance optical networks
• Low insertion loss and high return loss for reliable connectivity
• Precision ceramic ferrules for accurate fibre alignment
• Durable yellow LSZH or PVC jacket for protection and flexibility
• Compact 2 mm cable diameter for easy cable management
• Factory terminated and quality tested

Specifications

• Cable Length: 10 m
• Connector Type A: SC
• Connector Type B: LC
• Fibre Type: Single-mode
• Fibre Standard: OS1 / OS2
• Core / Cladding Diameter: 9 / 125 µm
• Cable Structure: Simplex (1 fibre)
• Cable Diameter: approx. 2 mm
• Connector Ferrule: Ceramic
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB (UPC typical)
• Jacket Material: LSZH or PVC
• Cable Colour: Yellow
• Operating Temperature: −20 °C to +70 °C

Applications

• Fibre optic patch panels and distribution frames
• Telecommunications and broadband networks
• Data centres and enterprise network infrastructures
• Optical transceivers, media converters, and network switches
• Fibre backbone and cross-connect cabling
• Test and measurement equipment
