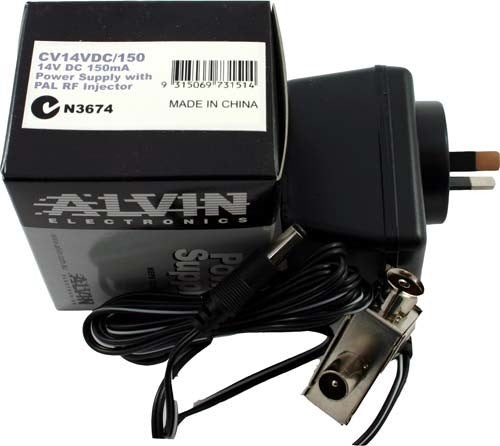

14V DC 150MA Power Supply With PAL Injector

The 14V DC 150mA Power Supply with PAL Injector is designed to provide a stable DC voltage to TV antennas, amplifiers, and LNBs while injecting the PAL (Passive Antenna Line) signal into the coaxial cable. This compact unit ensures reliable power delivery for small antenna systems, satellite LNBs, or inline amplifiers up to 150mA. The integrated PAL injector allows simultaneous transmission of DC power and RF signals over a single coaxial cable, simplifying installations and reducing cable clutter. Its robust design is suitable for indoor use, providing efficient and safe operation for domestic or small-scale commercial TV setups.

Key Features:

• Provides 14V DC output at 150mA for TV antenna systems

• Integrated PAL injector for combining DC power with RF signals

• Compact and easy-to-install design

• Ideal for small antennas, LNBs, and inline amplifiers

• Reliable and stable voltage output for safe operation

• Reduces cable clutter by combining power and signal over one coax

• Suitable for domestic and small commercial TV setups

Specifications:

• Output Voltage: 14V DC

• Output Current: 150 mA

• Function: PAL injection (coaxial DC + RF)

• Connector Type: F-Type female output

• Input Voltage: 230V AC, 50Hz (standard mains)

• Power Consumption: ≤ 5 W

• Operating Temperature: –10°C to +50°C

• Dimensions: Approx. 70 × 40 × 30 mm

• Mounting: Desk or wall mountable (indoor use)
