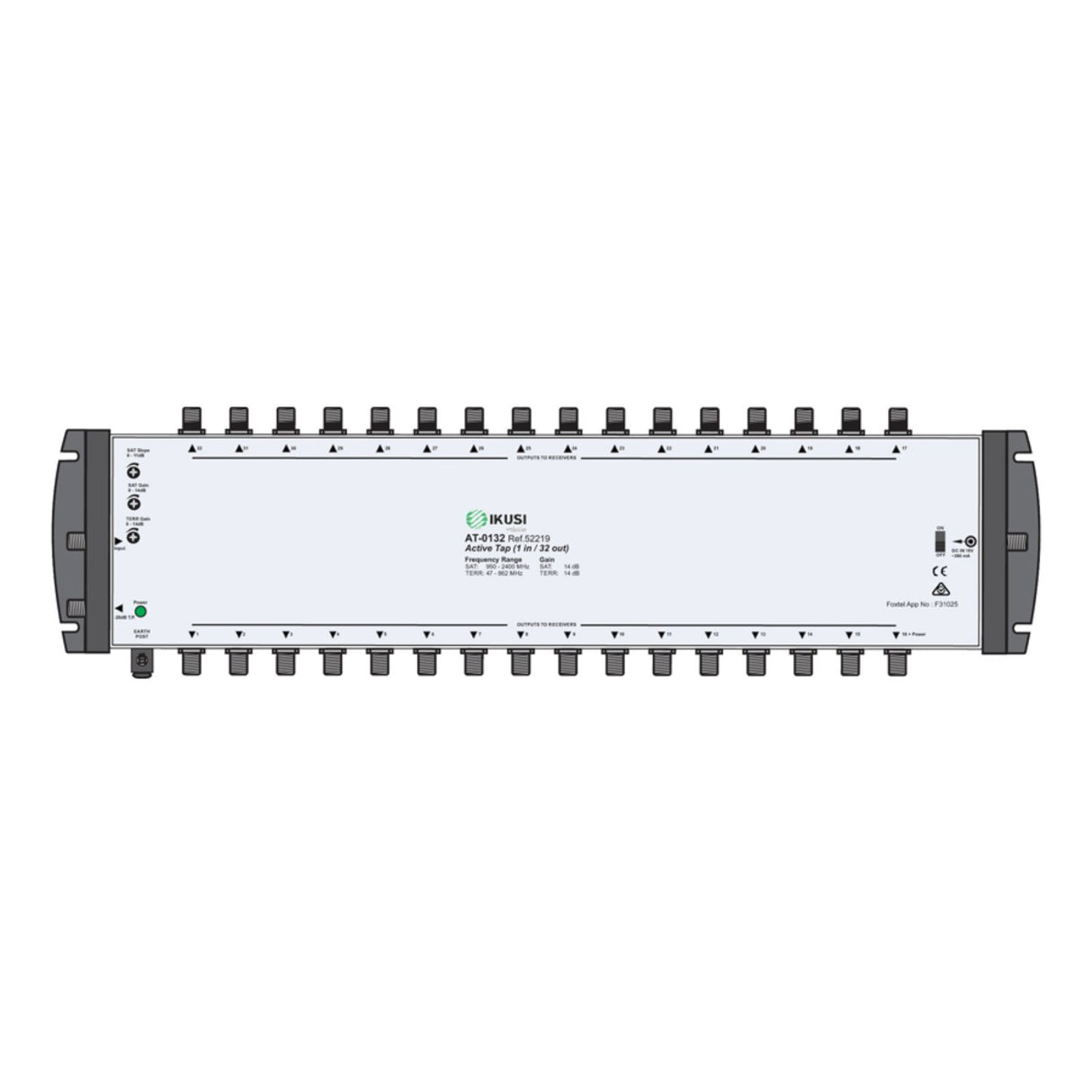

32 Way Active Tap 47-2400MHz | FOXTEL Stacker Approved

The 32 Way Active Tap 47–2400MHz is a high-performance, stacker-approved signal distribution device engineered for large-scale MATV and satellite systems. Designed to deliver superior signal strength and reliability, it supports frequencies from 47 MHz to 2400 MHz, ensuring compatibility across a wide range of digital and satellite broadcasting applications. This active tap is FOXTEL Stacker Approved, making it suitable for use in professional Foxtel installations and compliant with stringent Australian broadcast standards. It features built-in amplification to overcome signal losses over long distances and multiple outputs, ensuring consistent signal quality to all connected devices.

Key Features:

• FOXTEL Stacker Approved – Certified for compliance with Foxtel system requirements.

• 47–2400 MHz Frequency Range – Compatible with both terrestrial and satellite signals.

• 32 Outputs – Ideal for high-density residential or commercial installations.

• Active Tap Design – Features internal amplification to maintain signal integrity.

• High Isolation and Low Insertion Loss – Reduces interference and maximises signal clarity.

• Compact and Durable Housing – Suitable for rack or wall mounting in communication cabinets.

• Power Pass Capabilities – Select ports allow DC pass-through for powering downstream equipment.

Specifications:

• Type: Active Tap

• Number of Outputs: 32

• Frequency Range: 47–2400 MHz

• Return Loss: >10 dB

• Isolation Between Outputs: >25 dB

• Insertion Loss (Tap Port): Typically 20 dB

• Impedance: 75 Ohm

• Power Supply: External (typically 12–18V DC, specify per unit)

• DC Power Pass: Select ports (check technical sheet for port numbers)

• Certification: FOXTEL Stacker Approved

• Connector Type: F-Type

• Operating Temperature: -10°C to +50°C

• Housing: Die-cast aluminium with RF shielding

• Dimensions: Approx. 250 mm (L) x 180 mm (W) x 50 mm (H)
