ATEN 24 Port 240V 20A IP56 Captive Plug | PDU

The ATEN NRGence PE1224mG Energy PDU is a professional-grade vertical Power Distribution Unit designed to provide reliable, high-density power distribution for data centres, server rooms, telecommunications racks and critical network infrastructure.

Featuring 24 power outlets – 12 × Australian 15 A outlets and 12 × IEC C13 outlets – the PE1224mG provides excellent flexibility for powering a combination of servers, switches, storage systems, communications equipment and other rack-mounted devices.

This configuration is supplied with a 20 A IP56 Captive Plug, providing a robust and secure input connection suited to demanding commercial, communications and equipment-room installations.

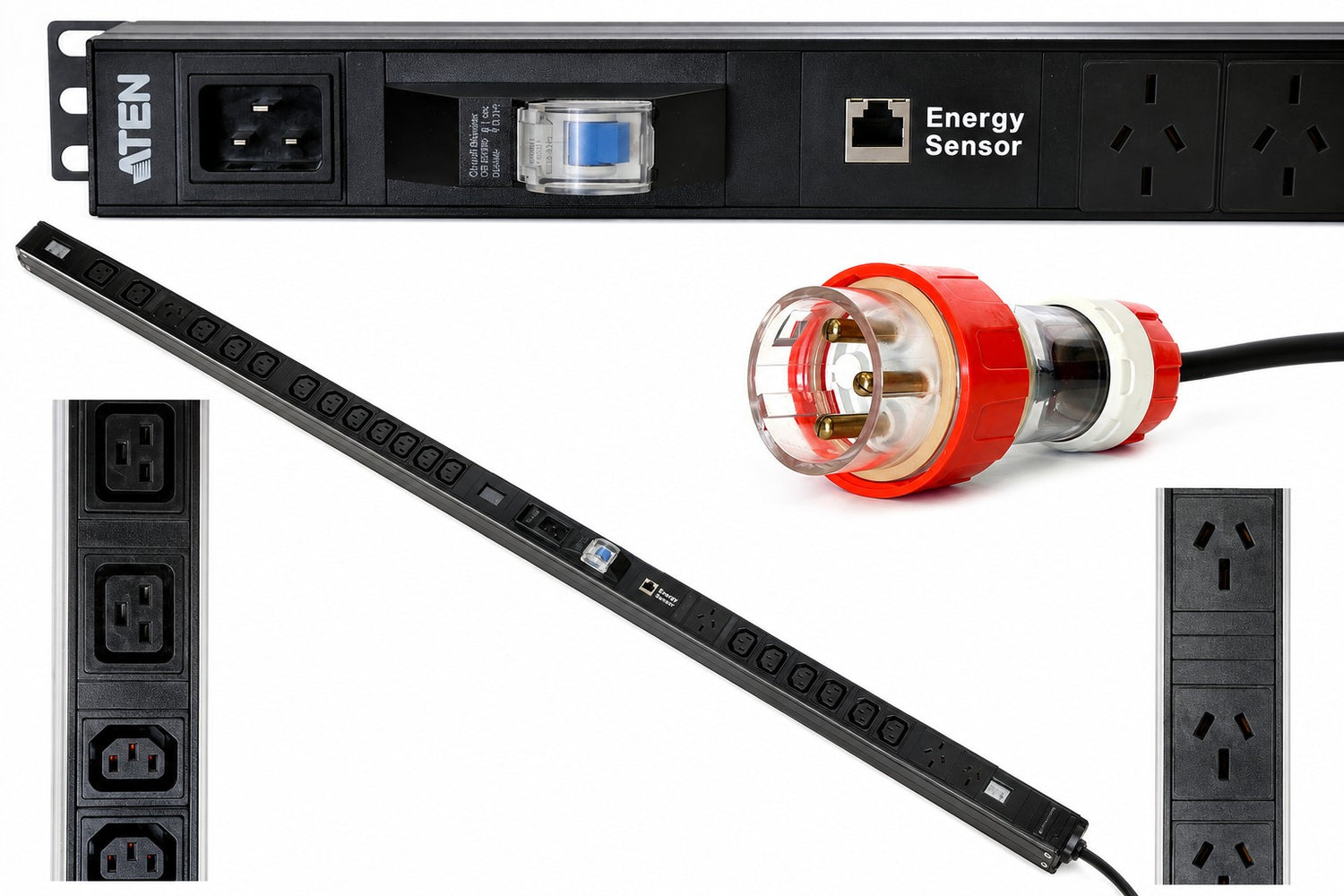

An integrated current meter provides convenient local load monitoring, while the Energy Sensor Port allows connection to an ATEN EC1000 Energy Box for additional energy monitoring functionality. Circuit breaker protection provides an additional layer of protection against electrical overload. The ATEN guide identifies the power inlet, circuit breaker, energy sensor port, power outlets and current meter as the principal hardware components.

With its slim 1,437 mm vertical form factor, mixed outlet configuration and professional monitoring capabilities, the PE1224mG delivers a powerful rack power solution where performance, visibility and dependable operation matter.

Key Features

• 20 A IP56 Captive Plug for robust input connection
• 24 power outlets for high-density equipment installations
• 12 × Australian 15 A outlets
• 12 × IEC C13 outlets
• 240 V AC nominal operating voltage
• Integrated current meter for local load monitoring
• Energy Sensor Port for connection to an ATEN EC1000 Energy Box
• Branch circuit breaker protection
• Mixed Australian and IEC outlet configuration
• Slim vertical design maximises valuable rack space
• Heavy-duty construction for professional installations
• Suitable for continuous server and network infrastructure applications
• Ideal for data centres, telecommunications and enterprise IT environments

Specifications

Applications

• Data centres
• Server rooms
• 19-inch equipment racks and cabinets
• Telecommunications infrastructure
• Network and communications cabinets
• Enterprise IT installations
• Servers and storage systems
• Network switches and routers
• Security and surveillance systems
• Broadcast and professional AV racks
• Industrial communications equipment
• Critical infrastructure installations
