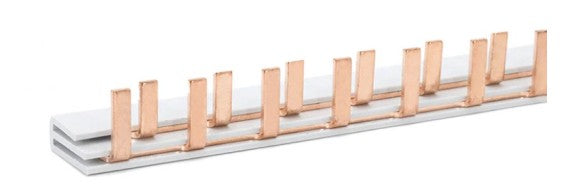

Busbar 63A 1P+N 12 Way | Pin Type

The 63A 1P+N 12 Way Pin Type Busbar is designed to provide safe, efficient, and compact distribution of power across multiple single-phase circuit breakers within an electrical panel. Engineered for ease of installation and optimal electrical conductivity, this busbar supports up to 12 modules, offering reliable and secure connection between MCBs and RCBOs.

Its pin-type design allows direct insertion into breaker terminals, eliminating the need for multiple wires and reducing installation time while ensuring neat, professional panel wiring. Suitable for domestic, commercial, and light industrial switchboards.

Key Features:

• 12 Way Distribution: Feeds up to 12 single-phase breakers

• 1P+N Configuration: Supports phase and neutral wiring

• 63A Current Rating: Handles moderate to high-load applications

• Pin Type Design: Direct insertion into terminals for fast installation

• High Conductivity Copper: Ensures low resistance and efficient power transfer

• Flame-Retardant Insulation: Enhances safety in switchboards

• Time-Saving Setup: Eliminates messy and time-consuming manual wiring

• AS/NZS Compliant: Meets Australian safety and installation standards

Specifications:

• Configuration: 1P + Neutral

• Number of Ways: 12

• Current Rating: 63A

• Voltage Rating: 230/400V AC

• Type: Pin type

• Material: Copper conductor with insulated casing

• Standards Compliance: AS/NZS 61439.1 & 2
