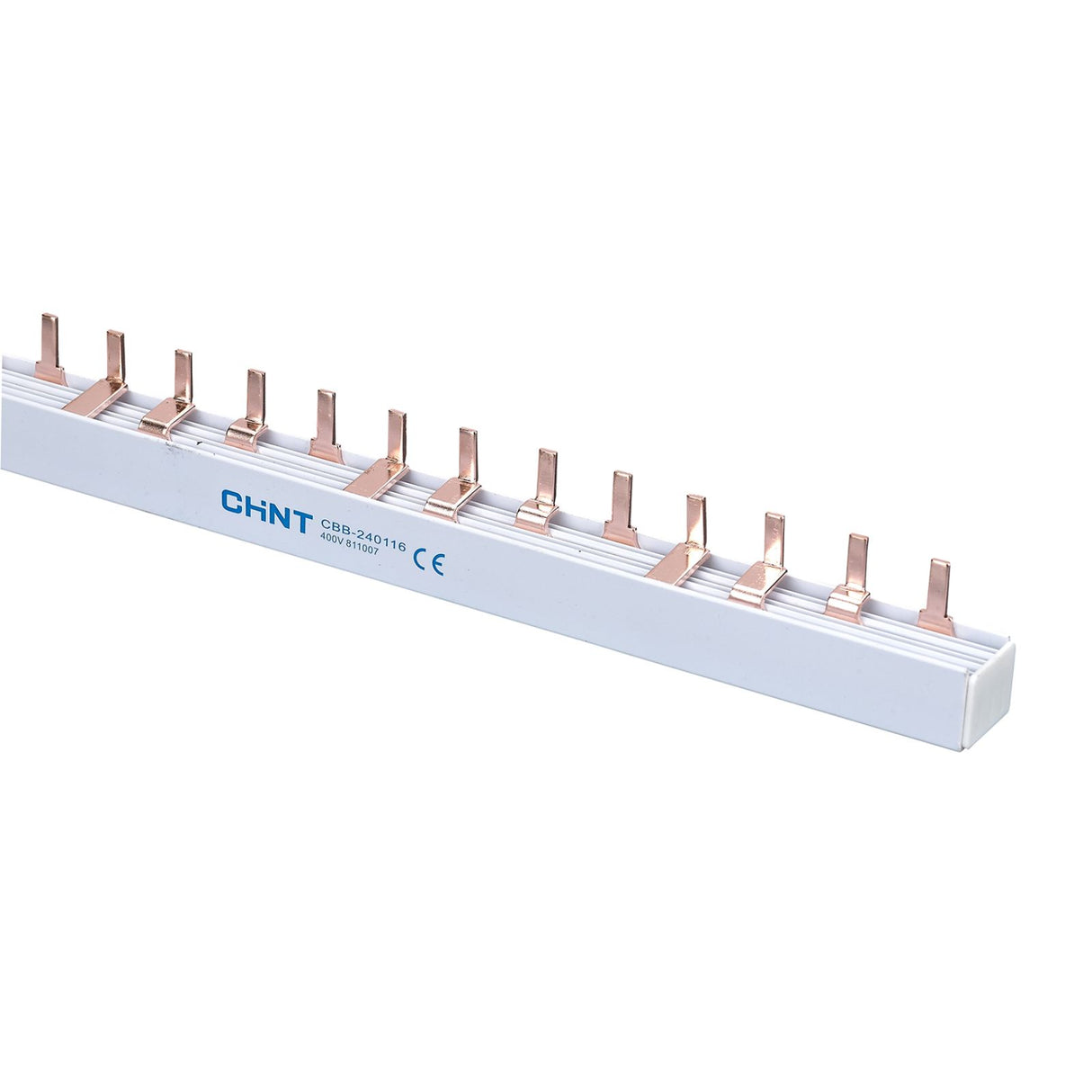

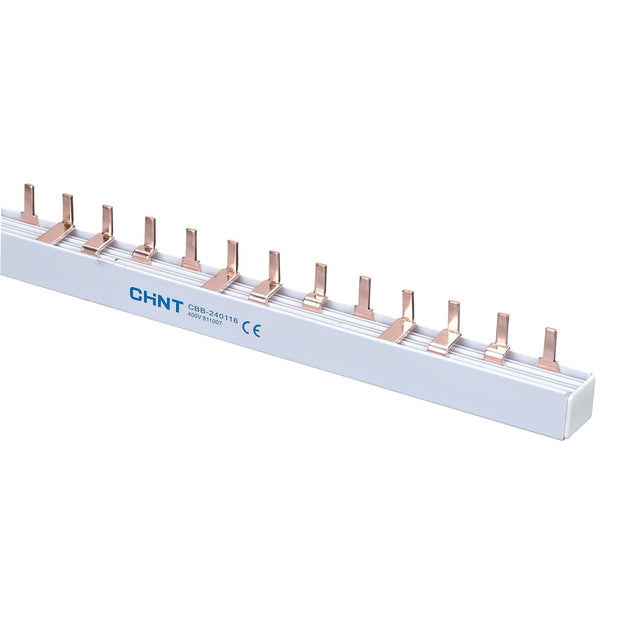

Busbar 80A 1P 12way | Pin Type

The 80A 1P 12-Way Pin Type Busbar is a durable and high-performance electrical distribution accessory designed to simplify and streamline connections across multiple single-pole circuit breakers. With a pin-type configuration, it allows for quick, secure, and safe installation in switchboards and distribution panels.

Rated for up to 80A, this busbar ensures reliable power distribution with minimal voltage drop and heat generation. The 12-way format supports up to twelve single-pole MCBs, making it ideal for use in residential, commercial, or light industrial electrical systems.

Key Features:

• Pin Type Design: Enables fast and secure connections to MCBs

• 80A Rated Capacity: Handles high current loads with stability

• 1 Pole (1P): Compatible with single-pole breakers

• 12-Way Configuration: Connect up to 12 MCBs efficiently

• Copper Conductors: Ensures excellent conductivity and durability

• Insulated Base: Provides safety and protection during use

• Time-Saving Installation: Reduces wiring complexity and time

• Standards Compliant: Meets IEC/AS electrical standards

Specifications:

• Rated Current: 80A

• Poles: 1P (single phase)

• Connection Type: Pin type

• Number of Ways: 12

• Material: Copper with insulation sleeve

• Voltage Rating: 230/400V AC

• Busbar Width: Standard for DIN rail applications

• Standards: Compliant with AS/NZS and IEC standards

• Application: Switchboards, load centres, control panels
