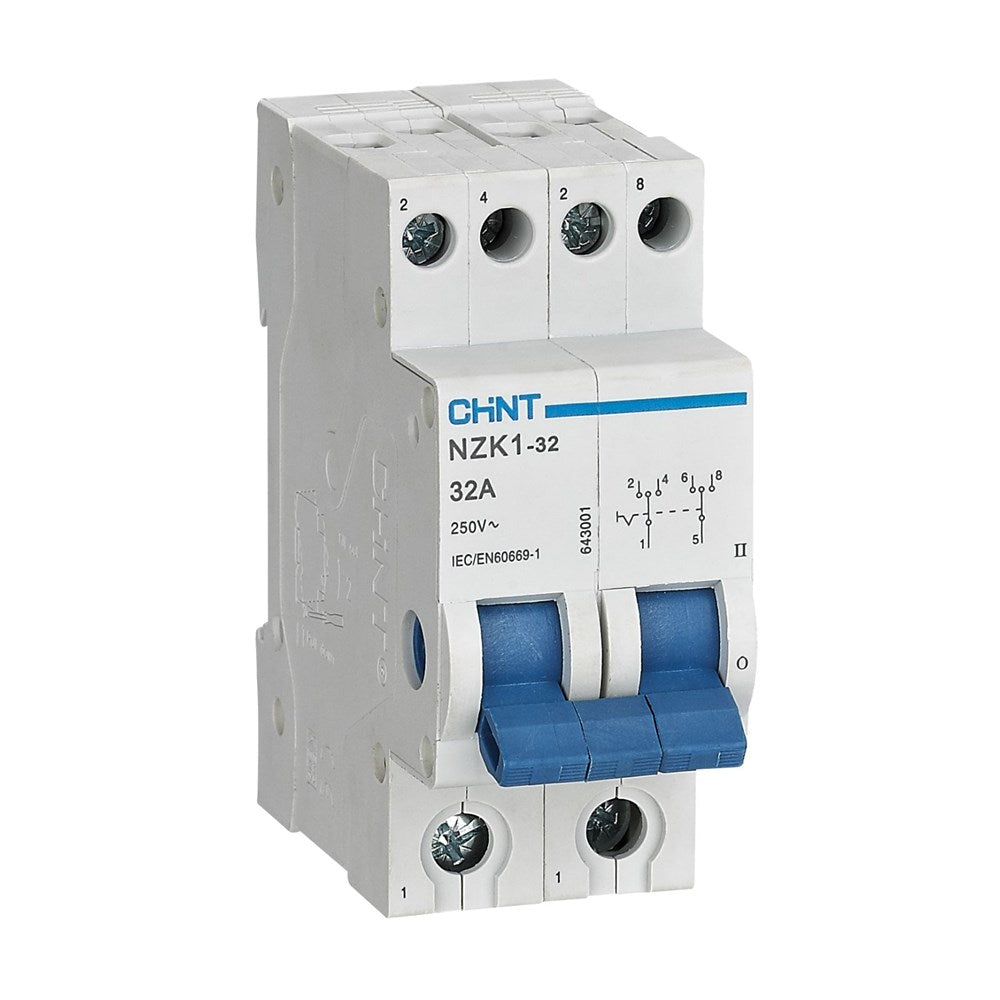

Changeover Switch | 2 pole | 32A | 240V AC

The 2 Pole 32A 240V AC Changeover Switch is a robust and reliable manual transfer switch designed for safely switching electrical circuits between two power sources. Ideal for backup power applications, such as changing supply from mains power to a generator, it ensures smooth and secure power transfer without interruption.

Built with high-quality, durable components, this changeover switch offers 32A current capacity and is rated for 240V AC single-phase applications. The 2-pole design isolates both the active and neutral conductors, ensuring enhanced safety and compliance with electrical standards.

Its compact and easy-to-install construction makes it suitable for residential, commercial, and light industrial applications where a safe and dependable changeover is essential.

Key Features:

• 2 Pole Isolation – Switches both active and neutral conductors for maximum safety

• 32A Rated Current – Suitable for small to medium electrical loads

• 240V AC Rated Voltage – Ideal for single-phase applications

• Manual Transfer – Allows safe changeover between two power sources

• Durable Construction – Long-lasting and reliable performance

• Clear Position Markings – Easy identification of power source selection

• Compact Design – Space-saving installation in distribution boards or enclosures

Specifications:

• Type: Manual Changeover Switch

• Number of Poles: 2

• Rated Current: 32A

• Rated Voltage: 240V AC

• Operation Mode: Manual

• Mounting: DIN rail or panel mount (depending on model)

• Material: Flame-retardant, impact-resistant housing

• Contact Material: High-conductivity copper alloy

• Operating Temperature: -25°C to +55°C

• Standards Compliance: IEC 60947-3 or equivalent
