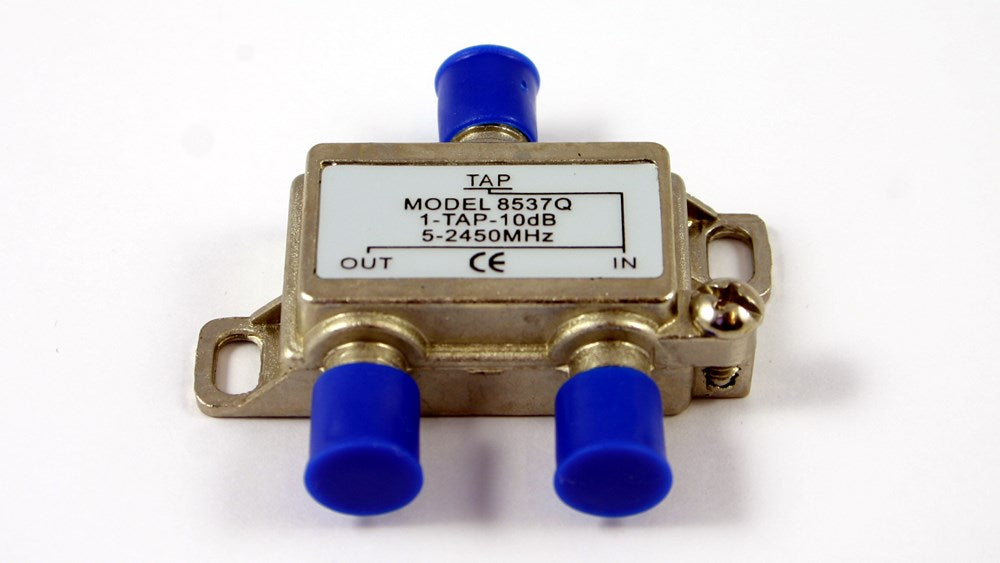

DIRECTIONAL COUPLER 1 TAP 10 db

The Directional Coupler 1 Tap 10 dB is a specialized component in the field of RF (Radio Frequency) and telecommunications. This device is designed to split or couple a portion of the signal from the main transmission line, allowing for monitoring or branching within a network. Here's an overview of its features:

Key Features:

1. Directional Coupling:

   • Designed to allow a controlled amount of signal power to be coupled or extracted in a specific direction while maintaining the integrity of the main signal path.

2. 1 Tap Configuration:

   • Features a single tap, indicating that it has one output port for extracting a portion of the signal.

3. 10 dB Coupling Value:

   • The 10 dB value represents the coupling factor, indicating the amount of signal power that is directed to the tap. In this case, 10 dB signifies a 10% power coupling.

4. Signal Monitoring:

   • Ideal for applications where monitoring or analyzing a portion of the signal is necessary without disrupting the main transmission.

5. Network Optimization:

   • Used to optimize network performance by enabling signal monitoring, testing, or branching without significant signal loss.

6. Compact and Durable Design:

   • Typically designed to be compact, ensuring ease of integration into existing systems, and constructed with durable materials for long-term reliability.

7. Frequency Range Compatibility:

   • Designed to operate within specific frequency ranges relevant to the intended application, ensuring compatibility with the targeted signals.

8. Telecommunications and RF Applications:

   • Commonly employed in telecommunications, RF testing, and distribution systems where precise control over signal coupling is required.

9. Versatile Connectivity:

   • Can be integrated into various setups, including cable television (CATV) systems, satellite distribution, and other communication networks.

10. Bi-Directional or Uni-Directional:

    • Depending on the design, directional couplers may be bi-directional or uni-directional, allowing for flexibility in different network architectures.

The Directional Coupler 1 Tap 10 dB is a specialized component crucial for managing and monitoring signal flow in RF and telecommunications systems, providing controlled coupling for optimal network performance.
