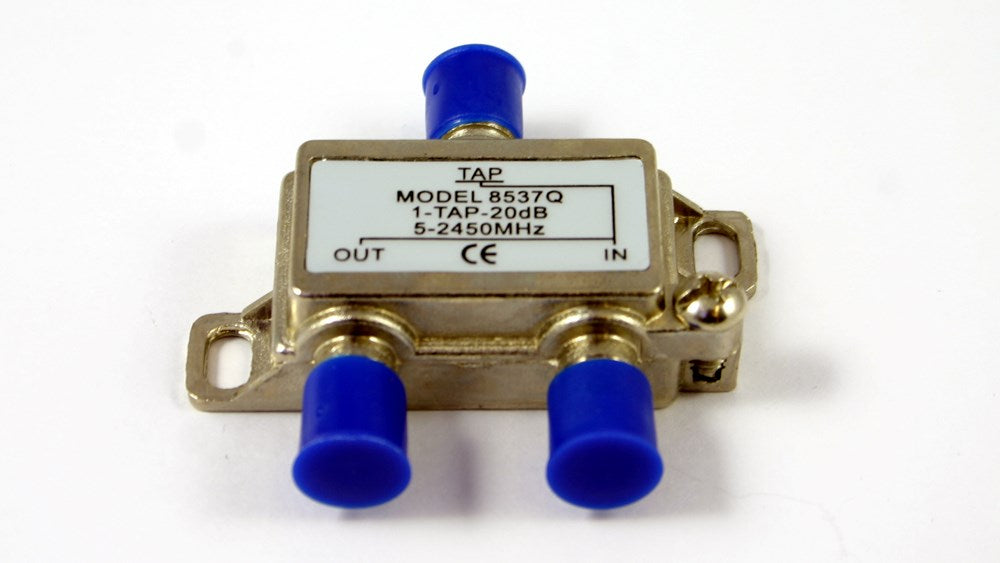

Directional Coupler 1 Tap 20 dB
About this Product
The Directional Coupler 1 Tap 20 dB is a professional RF signal distribution component designed to provide controlled signal extraction from a main coaxial distribution line. With a 20 dB tap output, it delivers a lower-level signal to a secondary outlet or device while allowing the majority of the RF signal to continue along the main line.
Ideal for MATV, SMATV, CATV and antenna distribution systems, this coupler is engineered for reliable signal distribution and consistent RF performance. It is particularly suited to installations where controlled signal levels are required across multiple outlets or distribution points.
Key Features
- 20 dB directional coupling for controlled signal extraction
- 1 tap output for connecting a secondary RF outlet or device
- Low insertion loss through the main signal path
- Designed for 75 Ω RF distribution systems
- Helps maintain balanced signal levels across distribution networks
- Suitable for MATV, SMATV and CATV applications
- Reliable signal isolation between main and tap outputs
- Compact and installer-friendly design
- Suitable for residential, commercial and multi-dwelling installations
- Ideal for cascading in larger RF distribution systems
Specifications
| Specification | Details |
|---|---|
| Product Type | Directional Coupler |
| Number of Taps | 1 |
| Tap/Coupling Loss | 20 dB |
| System Impedance | 75 Ω |
| Application | RF / MATV / SMATV / CATV |
| Main Line | Low insertion loss |
| Signal Distribution | Controlled RF signal extraction |
| Installation | Indoor |
| Connector Configuration | Model dependent |
| Frequency Range | Model dependent |
Applications
- MATV antenna distribution
- SMATV systems
- CATV networks
- Residential TV antenna systems
- Commercial RF distribution
- Multi-dwelling unit (MDU) installations
- RF signal branching
- Antenna headend distribution
- Cascaded RF distribution networks
- Connecting additional TV outlets or RF equipment
