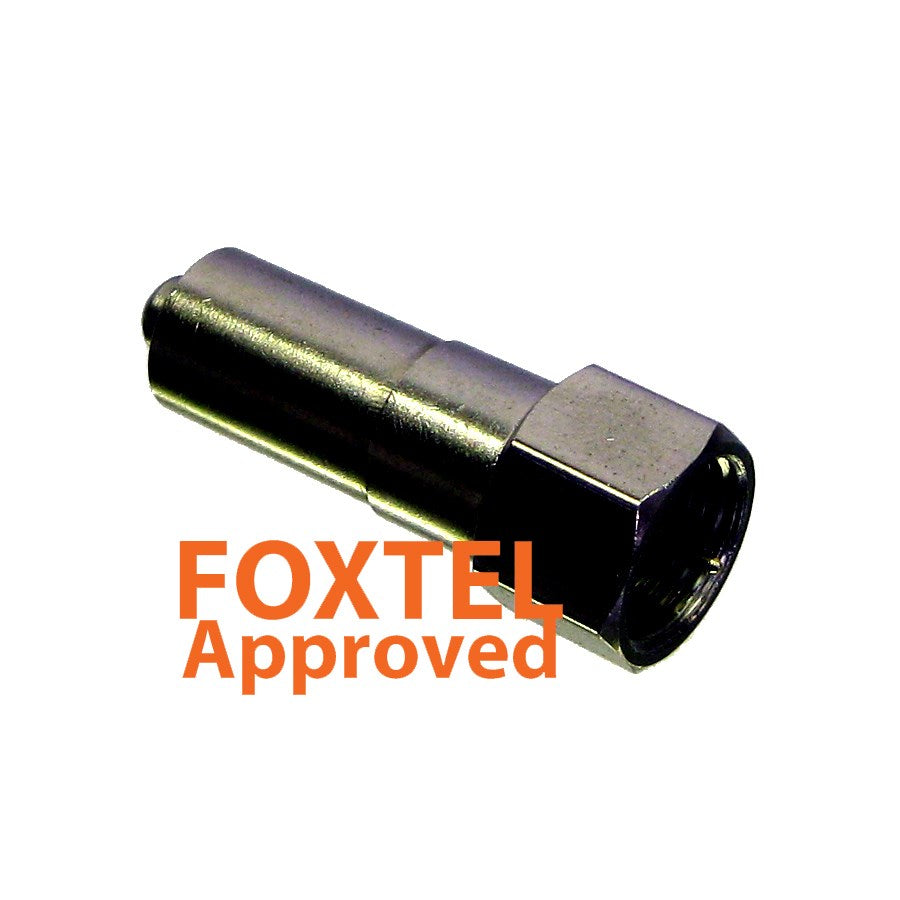

F Type DC Isolated Terminator

The F-Type DC Isolated Terminator is a 75 Ohm coaxial line terminator designed to cap unused F-Type ports in satellite, antenna, and cable TV distribution systems. With built-in DC isolation, this terminator prevents unwanted DC voltage or current from passing through, protecting connected devices and enhancing system stability. Ideal for use on splitters, amplifiers, and wall plates, it reduces signal reflections and minimizes RF interference. Durable and easy to install, it ensures a clean, interference-free signal in professional or residential RF setups.

Key Features:

• 75 Ohm termination for unused F-Type ports

• DC isolated to block voltage and prevent signal feedback

• Reduces signal reflection and RF interference

• Improves performance and protects active components

• Nickel-plated brass housing for corrosion resistance

• Quick screw-on installation

• Ideal for use on splitters, amps, wall plates, and taps

• Suitable for satellite, FTA, MATV/SMATV, and cable systems

Specifications:

• Connector Type: F-Type Male

• Impedance: 75 Ohm

• Isolation Type: DC isolated (blocks voltage)

• Frequency Range: 5 MHz – 3000 MHz

• Material: Nickel-plated brass

• Insertion Loss: ≤ 0.3 dB

• Return Loss: ≥ 20 dB

• Operating Temperature: –20°C to +60°C

• Length: Approx. 25 mm
