Optical Power Meter | Handheld Fibre Optic Power Meter | 800–1700 nm
About this Product

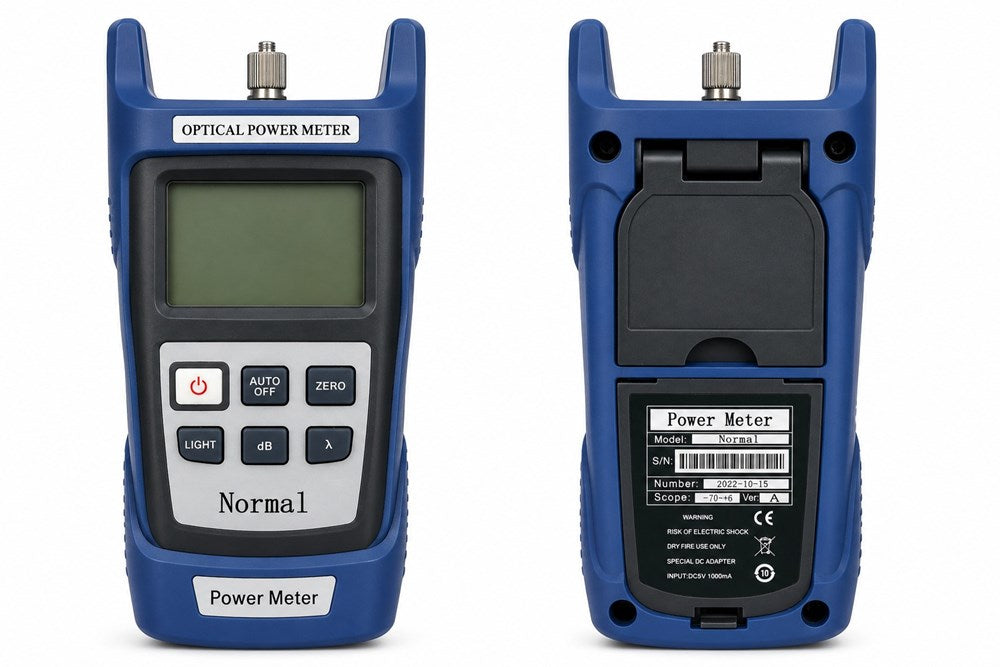

Measure fibre optic performance with precision and confidence. The Handheld Optical Power Meter is a professional-grade test instrument designed for accurately measuring optical power levels and fibre link loss across a wide range of fibre optic networks. Compact, lightweight and easy to operate, it is an essential tool for fibre installers, network technicians and maintenance engineers.
Supporting a broad wavelength range of 800–1700 nm, this versatile optical power meter is suitable for testing both singlemode and multimode fibre optic systems. It features a large LCD display, intuitive push-button controls, automatic power-off function and rugged impact-resistant housing, making it ideal for both field and laboratory use.
Whether commissioning new fibre links, troubleshooting network faults or performing routine maintenance, this Optical Power Meter delivers fast, reliable and repeatable measurements for telecommunications, FTTH, enterprise networks, CCTV and data centre applications.
Key Features
- Professional handheld optical power meter
- Wide measurement wavelength range 800–1700 nm
- Suitable for singlemode and multimode fibre
- Accurate optical power and insertion loss measurements
- High-contrast LCD display for easy reading
- Supports absolute power (dBm/mW) and relative loss (dB) measurements
- Auto power-off function extends battery life
- One-touch zero calibration
- Rugged impact-resistant housing for field use
- Compact, lightweight and ergonomic design
- Ideal for installation, commissioning and maintenance
- Compatible with common fibre optic connector adapters
Specifications
| Feature | Specification |
|---|---|
| Product Type | Optical Power Meter |
| Measurement Wavelength Range | 800–1700 nm |
| Measurement Units | dBm, dB, mW |
| Fibre Type | Singlemode & Multimode |
| Display | LCD |
| Functions | Absolute power, Relative loss, Zero calibration |
| Auto Power Off | Yes |
| Power Supply | DC 5 V or batteries |
| Housing | Impact-resistant ABS |
| Operating Environment | Indoor & field use |
Applications
Ideal for:
- FTTH installation and maintenance
- Fibre optic network commissioning
- Telecommunications
- Enterprise LAN networks
- Data centres
- CCTV fibre backbone testing
- Optical power verification
- Fibre link loss testing
- ISP maintenance
- Industrial fibre optic networks
- Educational laboratories
- Fibre optic troubleshooting and repairs
