Power Injector F Type 5-2400MHZ
About this Product

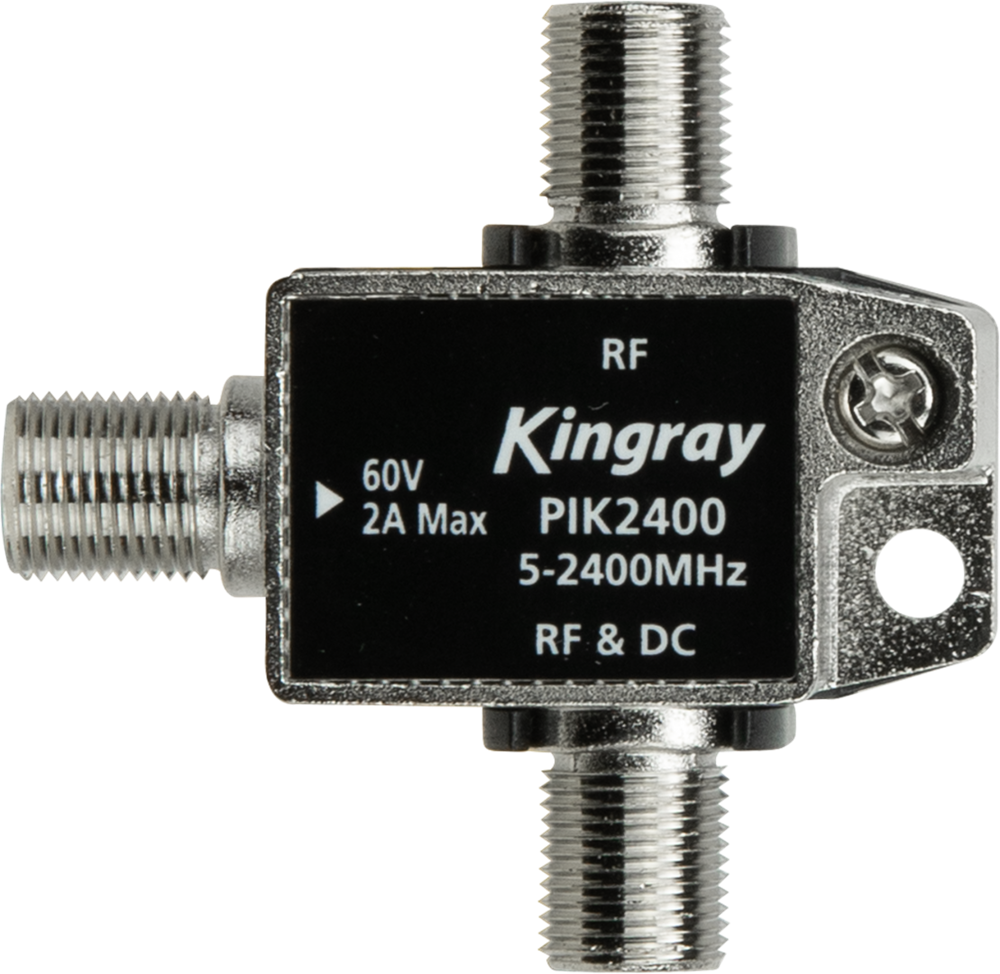

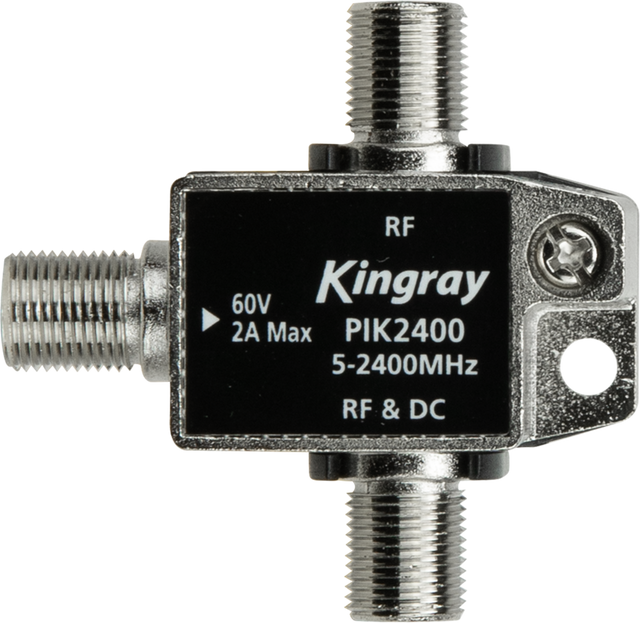

The Power Injector F Type 5–2400 MHz is a high‑performance RF power injector designed for use in broadband communication systems requiring DC power to be inserted into coaxial feed lines. Featuring robust shielding and precision F‑type connectors, it enables the reliable delivery of DC power to remote devices such as amplifiers, LNBs, antennas, and masthead amplifiers without interrupting high‑frequency signal transmission up to 2400 MHz. Its wide frequency range makes it suitable for terrestrial TV, satellite, wireless broadband, and CATV networks, ensuring minimal signal loss and stable operation in harsh outdoor environments. The injector’s compact housing and screw‑on F connectors ensure solid mechanical and electrical connections for long‑term installations.
Key Features
- Wide Frequency Range: 5–2400 MHz — suitable for RF and IF signals across communication systems
- Low Insertion Loss: Minimises signal degradation for optimal performance
- F‑Type Connectors: Standardised threaded connectors for secure, low‑loss connections
- DC Power Injection: Delivers power over the coaxial line to remote devices
- High Power Handling: Supports a broad range of devices and power budgets
- Shielded Housing: Reduces EMI/RFI interference for stable signal quality
- Compact & Durable: Rugged design for indoor and outdoor use
- Easy Installation: No tuning required, plug‑and‑play operation
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 5 MHz to 2400 MHz |
| Connector Type | F‑Type Female (input/output) |
| Insertion Loss | ≤ 1.0 dB (typical within range) |
| Return Loss | ≥ 10 dB |
| DC Power Input Range | 5 V to 24 V DC |
| Maximum DC Current | 500 mA (device dependent) |
| Impedance | 75 Ω |
| Operating Temperature | –20 °C to +60 °C |
| Housing Material | Zinc / Aluminium alloy, corrosion‑resistant finish |
| Dimensions (approx.) | 60 mm × 30 mm × 20 mm |
| Weight (approx.) | 50 g |
| Compliance | RoHS / CE (where applicable) |
Applications
- The Power Injector is ideal for systems requiring remote DC powering over coaxial cabling while maintaining RF signal integrity, including:
- Satellite TV LNB Powering
- Digital TV and Cable TV Headends
- Terrestrial Antenna Amplifiers
- Wireless Broadband & Wi‑Fi Systems
- RF Signal Distribution Networks
- CCTV and RF Monitoring Systems
- Outdoor Telecommunications Equipment
