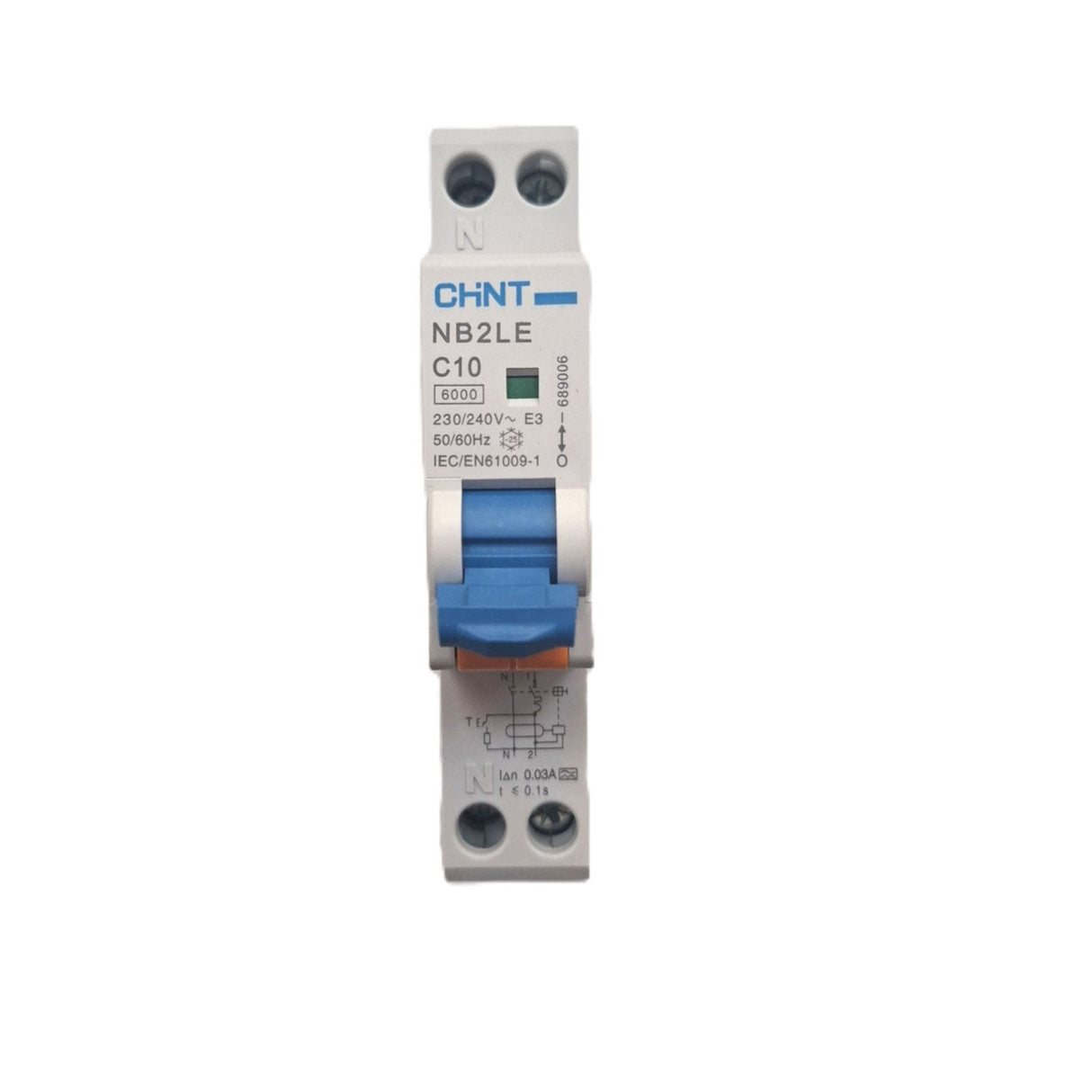

RCBO 1P+N 6kA 10A 30mA | 2 Screw Terminal Type A

The RCBO 1P+N 6kA 10A 30mA Type A with 2-screw terminals is a high-performance safety device designed to provide both overload and short circuit protection, as well as residual current (earth leakage) protection in a single compact module. Ideal for residential, commercial, and light industrial applications, this RCBO combines functionality and reliability, ensuring user safety and equipment protection.

It is suitable for circuits with mixed AC and pulsating DC earth leakage currents, thanks to its Type A sensitivity. The 2-screw terminal design ensures secure, consistent electrical connections and easy installation in DIN rail-mounted switchboards.

Key Features:

• Rated Current: 10A

• Breaking Capacity: 6kA

• RCBO Type: Type A (sensitive to AC and pulsating DC faults)

• Poles: 1P+N (Single Pole + Neutral)

• Residual Current Trip: 30mA

• Curve: C Curve (for general purpose circuits with moderate inrush currents)

• Terminals: 2-screw connection for secure installation

• Mounting: DIN rail

• Compact Design: Saves space in distribution boards

• Applications: Lighting, power outlets, and general low-voltage protection

• Complies with: AS/NZS 61009.1

Specifications:

• Rated Voltage: 230V AC

• Rated Frequency: 50Hz

• Rated Current: 10A

• Breaking Capacity: 6kA

• Tripping Curve: C

• Residual Operating Current (IΔn): 30mA

• Type: A (AC and pulsating DC sensitivity)

• Poles: 1P+N

• Mounting: DIN rail, 2 modules

• Terminal Type: 2-screw terminal

• Operating Temperature: -5°C to +40°C

• Standards: AS/NZS 61009, IEC 61009
