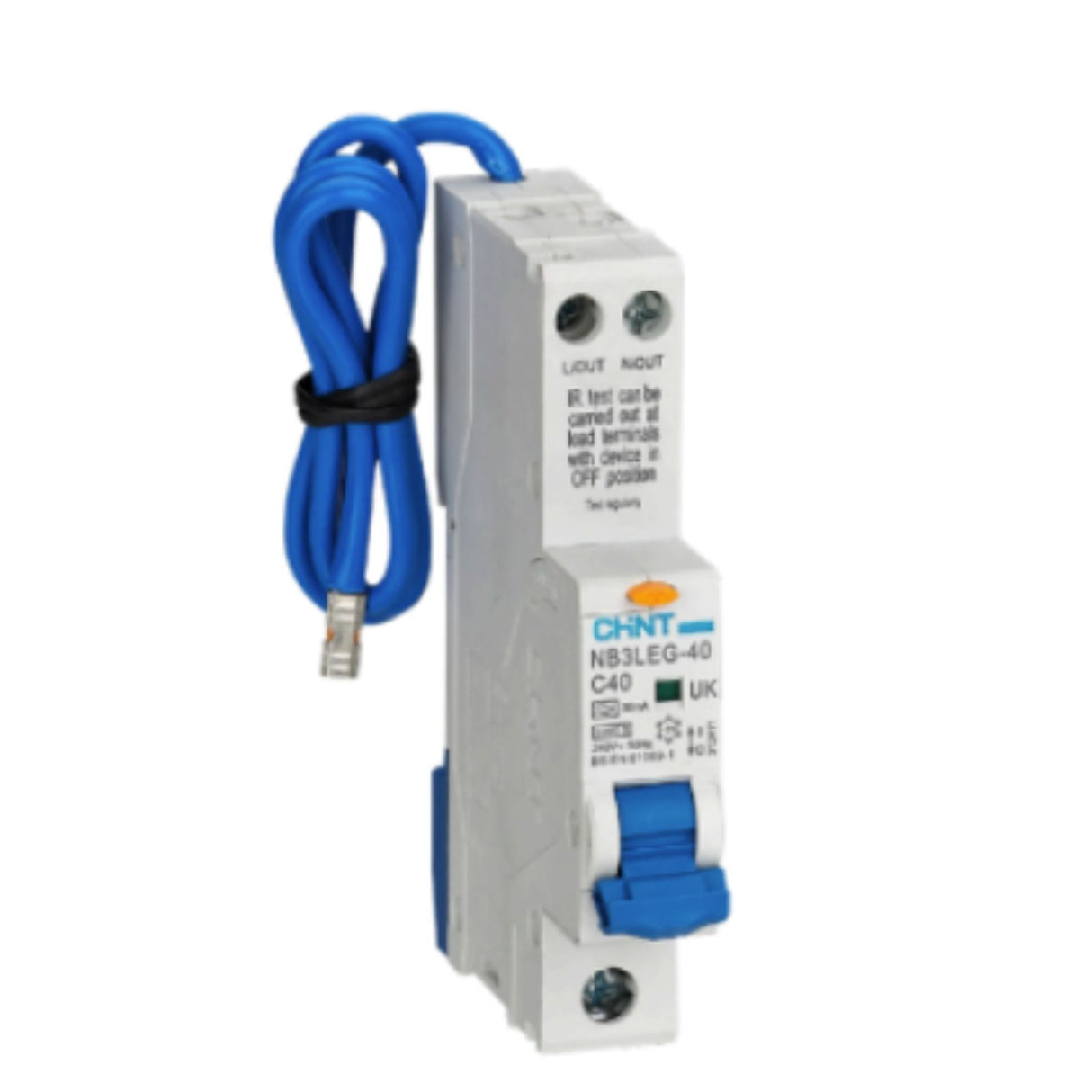

RCBO 1P+N 6kA 40A 30m Type A with Tail | C Curve | Switchboard Mount

The RCBO 1P+N 6kA 40A 30mA Type A with Tail is a compact safety device that combines residual current (RCD) protection with miniature circuit breaker (MCB) functionality in one module. Designed for switchboard mounting, this unit features pre-wired neutral tails for quick and efficient installation. It is ideal for protecting lighting and power circuits in both residential and commercial applications.

With Type A sensitivity, it protects against AC and pulsating DC earth leakage faults. The C Curve trip characteristic makes it suitable for general-purpose loads with moderate inrush currents, such as motors or fluorescent lighting.

Key Features:

• Integrated Protection: Combines short circuit, overload, and residual current protection

• Rated Current: 40A

• Breaking Capacity: 6kA

• Earth Leakage Sensitivity: 30mA

• Type A: Detects AC and pulsating DC faults

• C Curve Tripping: Suitable for general electrical circuits

• Pre-Wired Tail: Simplifies switchboard installation

• Poles: 1P+N (Single pole + Neutral)

• Compact 2-Module Width: Ideal for DIN rail switchboards

• Switchboard Mountable: Designed for fast integration into standard boards

• Standards Compliant: AS/NZS 61009.1, IEC 61009

Specifications:

• Voltage: 230V AC

• Frequency: 50Hz

• Rated Current: 40A

• Breaking Capacity: 6kA

• Residual Current Trip: 30mA

• Curve Type: C

• RCBO Type: Type A

• Terminals: Load terminal + pre-wired tail for neutral

• Mounting: DIN rail (2 modules)

• Application: Lighting and power circuits

• Operating Temp: -5°C to +40°C

• Compliance: AS/NZS and IEC standards
