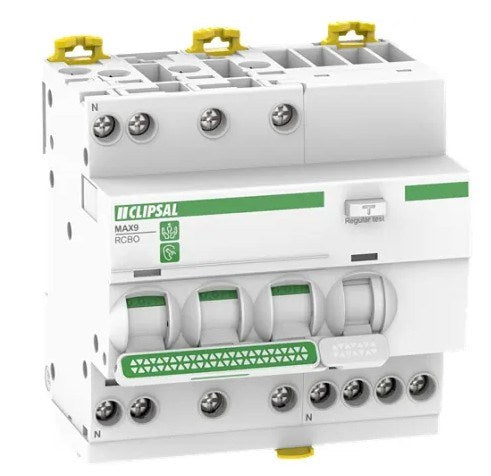

RCBO 3P+N 10A 30mA 10kA | 4 Module C Curve Type A

The RCBO 3P+N 10A 30mA 10kA Type A (4 Module C Curve) is a high-performance safety device designed to protect against overload, short circuit, and earth leakage faults in three-phase electrical systems with a neutral. Rated at 10A with a 30mA residual current sensitivity and 10kA breaking capacity, this RCBO is ideal for residential, commercial, and light industrial applications.

The Type A classification provides protection against both AC and pulsating DC residual currents, making it suitable for modern installations with electronic loads such as inverters, EV chargers, and appliances with variable speed drives. Compact and DIN rail mountable, this RCBO ensures reliable protection in a 4-module form factor.

Key Features:

• 3P+N Protection: Safeguards all phases and neutral lines

• Type A RCD: Detects AC and pulsating DC leakage currents

• Rated Current: 10A

• Tripping Sensitivity: 30mA for personal and equipment safety

• Breaking Capacity: 10kA for high fault current installations

• C Curve Trip: Ideal for general-purpose loads with moderate inrush

• Compact 4-Mod Design: Saves switchboard space

• DIN Rail Mount: Quick and secure installation

• Test Function: Ensures operational readiness

• Compliance: IEC/EN 61009-1, Type A standard

Specifications:

• Poles: 3P+N

• Rated Current (In): 10A

• Residual Current Trip (IΔn): 30mA

• Breaking Capacity (Icu): 10kA

• Trip Curve: C Curve

• Type: Type A (AC + pulsating DC sensitivity)

• Modules: 4 MOD (DIN rail width)

• Voltage: 400V AC

• Frequency: 50/60Hz

• Mounting: DIN rail

• Standards: IEC/EN 61009-1
