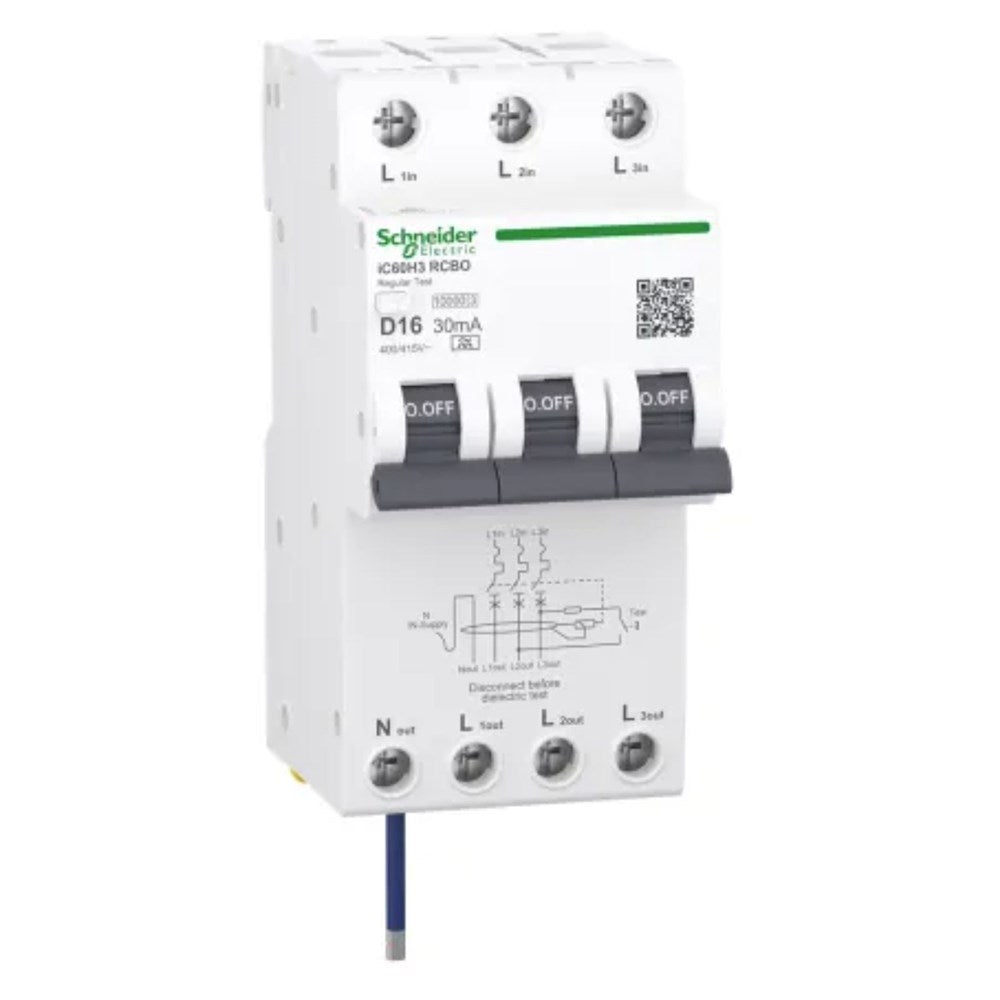

RCBO 3P+N 10KA 16A 30MA 4MOD C Curve Type

The RCBO 3P+N 16A 30mA 10kA Type C Curve is a 4-module DIN rail–mounted residual current circuit breaker with overcurrent protection, engineered for use in three-phase installations. It integrates residual current (RCD) and miniature circuit breaker (MCB) functions, offering comprehensive protection against earth leakage, overloads, and short circuits.

With a 16A current rating and 30mA residual current sensitivity, this RCBO is ideal for protecting personnel and sensitive equipment in commercial and light industrial environments. The Type C tripping curve suits circuits with moderate inrush currents such as those powering lighting, motors, or mixed loads. Its high 10kA breaking capacity provides extra safety under high fault current conditions.

Key Features:

• All-in-One Protection: Combines RCD and MCB protection in one unit

• 3P+N Configuration: Suitable for three-phase installations

• 16A Current Rating: Ideal for general-purpose and light-load circuits

• 30mA Earth Leakage Protection: Ensures safety for people and equipment

• 10kA Breaking Capacity: High-level short-circuit protection

• Type C Tripping Curve: Withstands moderate inrush currents

• Compact Design: 4 DIN module width fits standard enclosures

• Compliant with IEC/EN 61009-1 and AS/NZS Standards

• Clear Visual Indicators: Status indicators for ON, OFF, and trip

Specifications:

• Configuration: 3P+N (Three-phase + Neutral)

• Rated Current: 16A

• Residual Current Sensitivity: 30mA

• Breaking Capacity: 10kA

• Tripping Curve: Type C

• Number of Modules: 4 DIN

• Voltage Rating: 400V AC

• Frequency: 50/60Hz

• Mounting: DIN Rail

• Compliance: IEC/EN 61009-1, AS/NZS standards
