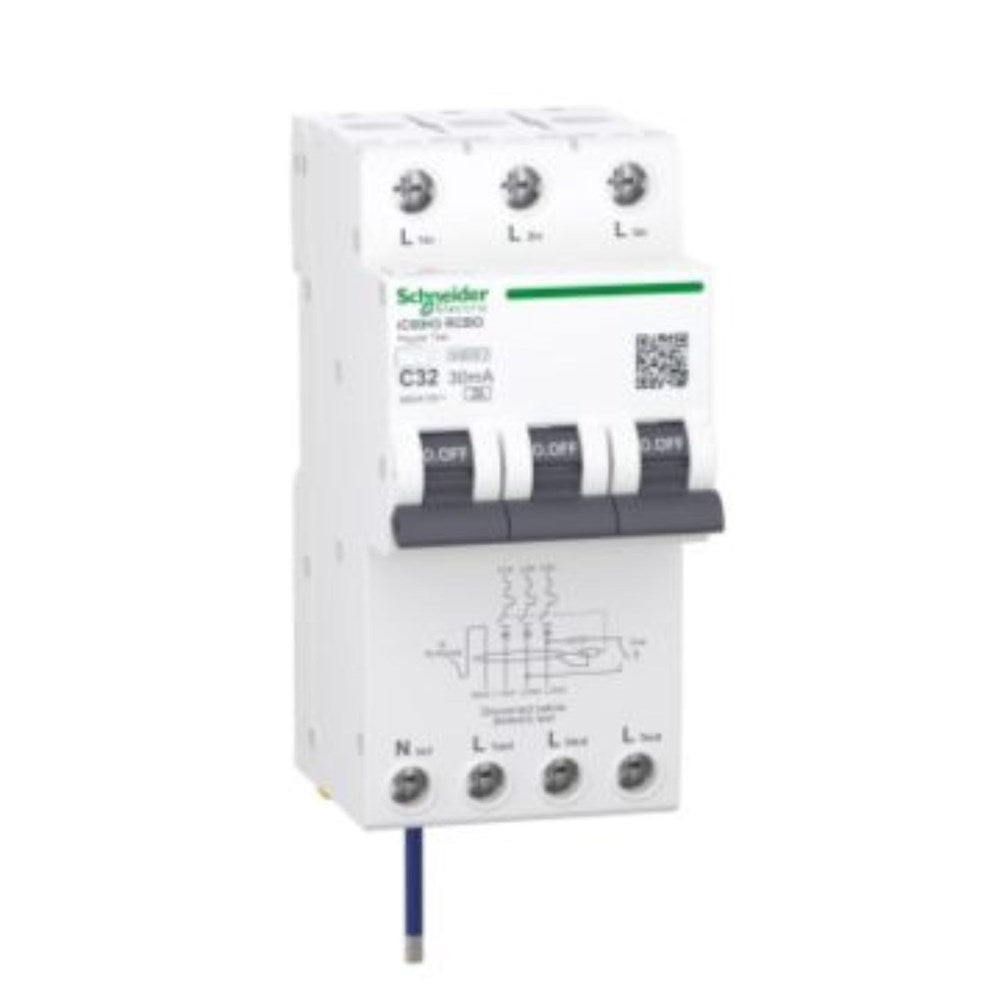

RCBO 3P+N 10KA 32A 30MA 4MOD C Curve Type

The RCBO 3P+N 32A 30mA 10kA Type C Curve is a premium residual current circuit breaker with overcurrent protection, designed for use in three-phase power systems requiring robust protection and high fault current tolerance. This 4-module unit integrates short-circuit, overload, and earth leakage protection in a single DIN rail–mounted device.

Ideal for industrial and commercial installations, this RCBO provides 32A current rating with a 30mA residual current sensitivity to quickly detect earth leakage faults. The C Curve trip characteristic makes it suitable for circuits with moderate inrush currents such as lighting, power sockets, and motor loads. Its 10kA breaking capacity ensures reliable operation even in high fault current environments.

Key Features:

• Integrated Protection: Combines overload, short-circuit, and RCD (earth leakage) protection

• 3P+N Configuration: Supports three-phase systems with neutral

• C Curve Trip Profile: Suitable for circuits with moderate inrush currents

• High Breaking Capacity: Rated for 10kA fault level

• Residual Current Sensitivity: 30mA for personal protection

• DIN Rail Mountable: 4-module width fits standard distribution boards

• Visual Indicators: Clear ON/OFF and trip status

• Applications: Commercial buildings, light industrial, machinery, motor protection

• Compliance: Meets IEC/EN 61009-1 and AS/NZS standards

Specifications:

• Poles: 3P+N

• Current Rating: 32A

• Residual Sensitivity: 30mA

• Tripping Curve: Type C

• Breaking Capacity: 10kA

• Modules: 4 DIN

• Voltage Rating: 400V AC

• Frequency: 50/60Hz

• Mounting Type: DIN rail

• Standard Compliance: IEC/EN 61009-1, AS/NZS
