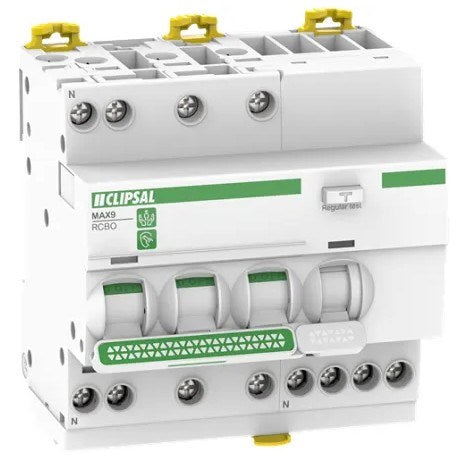

RCBO 3P+N 40A 30mA 10kA | 4 Module C Curve

The RCBO 3P+N 40A 30mA 10kA 4MOD C Curve is a combined residual current and circuit breaker device designed to provide protection against overloads, short circuits, and earth leakage faults in three-phase systems with a neutral. Suitable for residential, commercial, and industrial applications, this RCBO ensures enhanced safety and compliance with current electrical standards.

With a 40 amp current rating and 10kA breaking capacity, it is ideal for installations requiring high fault level protection. Its compact 4-module DIN rail design allows for efficient panel space usage and ease of installation.

Key Features:

• 3 Pole + Neutral (3P+N): Complete phase and neutral protection

• Rated Current: 40A

• Tripping Sensitivity: 30mA for personal protection

• Breaking Capacity: 10kA for high fault current environments

• C Curve Trip Characteristic: Ideal for general purpose loads

• Compact Design: 4-module width for space-saving panel layouts

• DIN Rail Mounting: Quick and secure installation

• Test Button: For periodic functionality checks

• Compliance: Meets IEC/EN 61009-1 standards

Specifications:

• Poles: 3P+N

• Rated Current (In): 40A

• Tripping Current (IΔn): 30mA

• Breaking Capacity: 10kA

• Trip Curve: Type C

• Modules: 4 MOD (DIN rail width)

• Rated Voltage: 400V AC

• Frequency: 50/60Hz

• Mounting: DIN rail

• Standards: IEC/EN 61009-1
