SC-SC 10db Attenuator Single Mode
About this Product

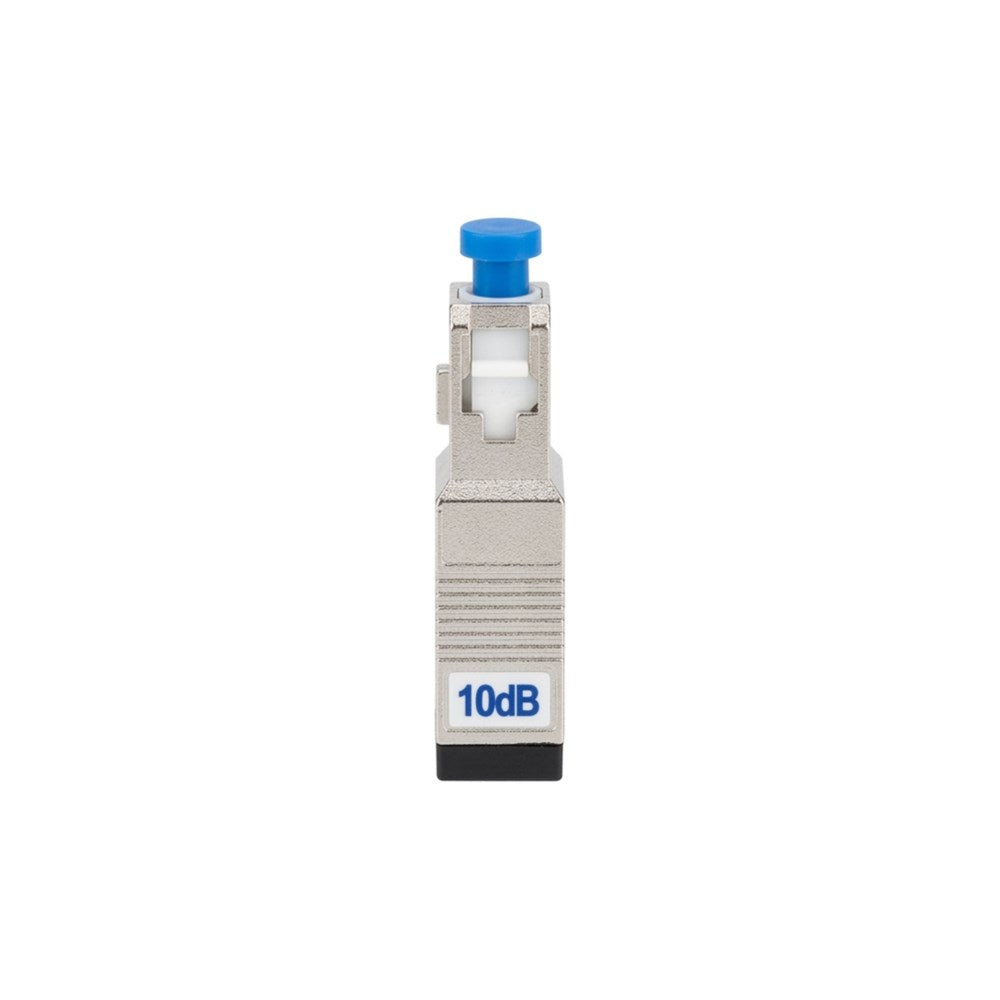

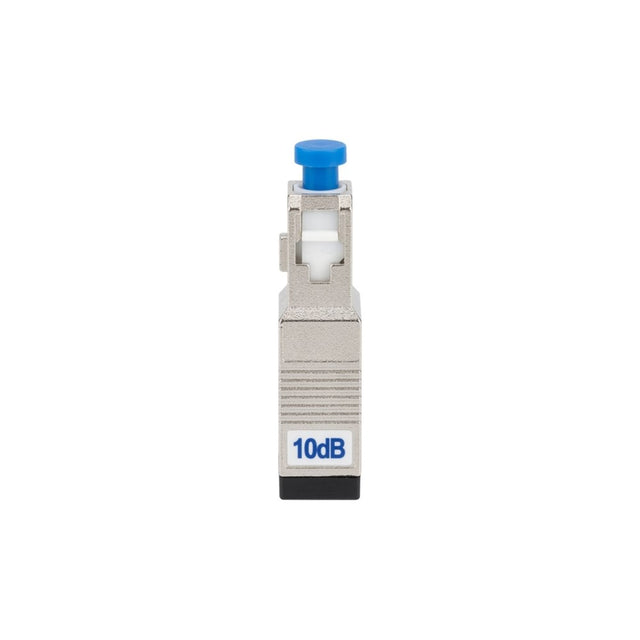

The SC-SC 10dB Single Mode Fibre Optic Attenuator is a premium passive optical device engineered to reduce optical signal power with high precision in single mode fibre networks. Designed for stable and reliable attenuation, this component helps prevent receiver overload, improves signal balance, and enhances overall network efficiency in high-speed fibre optic systems.
Built with precision ceramic ferrules and low back reflection technology, the SC-SC attenuator delivers dependable optical performance for telecommunications, FTTH, CATV, enterprise networking, and data centre applications. Its robust construction ensures long-lasting durability and consistent attenuation across demanding network environments.
Key Features
- Precision 10dB optical signal attenuation
- SC to SC connector interface for seamless connectivity
- Designed for single mode fibre optic systems
- Low insertion loss and excellent return loss performance
- High-quality ceramic ferrule for stable transmission
- Compact and durable construction
- Reliable signal management for high-speed networks
- Easy installation and integration into existing infrastructure
- Ideal for telecom, FTTH, CATV and data centre environments
- Long operational lifespan with consistent attenuation accuracy
Specifications
|
Specification |
Details |
|
Product Type |
Fibre Optic Attenuator |
|
Connector Type |
SC-SC |
|
Attenuation Value |
10dB |
|
Fibre Mode |
Single Mode |
|
Operating Wavelength |
1310nm / 1550nm |
|
Return Loss |
≥55dB |
|
Ferrule Material |
Ceramic |
|
Operating Temperature |
-40°C to +85°C |
|
Storage Temperature |
-40°C to +85°C |
|
Housing Material |
Metal / High Durability Composite |
|
Application Standard |
Telecom & Data Communication Networks |
Applications
- Telecommunications fibre optic systems
- FTTH (Fibre to the Home) networks
- Data centre optical infrastructure
- CATV fibre transmission systems
- Optical receiver protection
- Passive optical network (PON) deployments
- Fibre optic testing and measurement equipment
- Enterprise and commercial fibre networks
- High-speed optical communication systems
