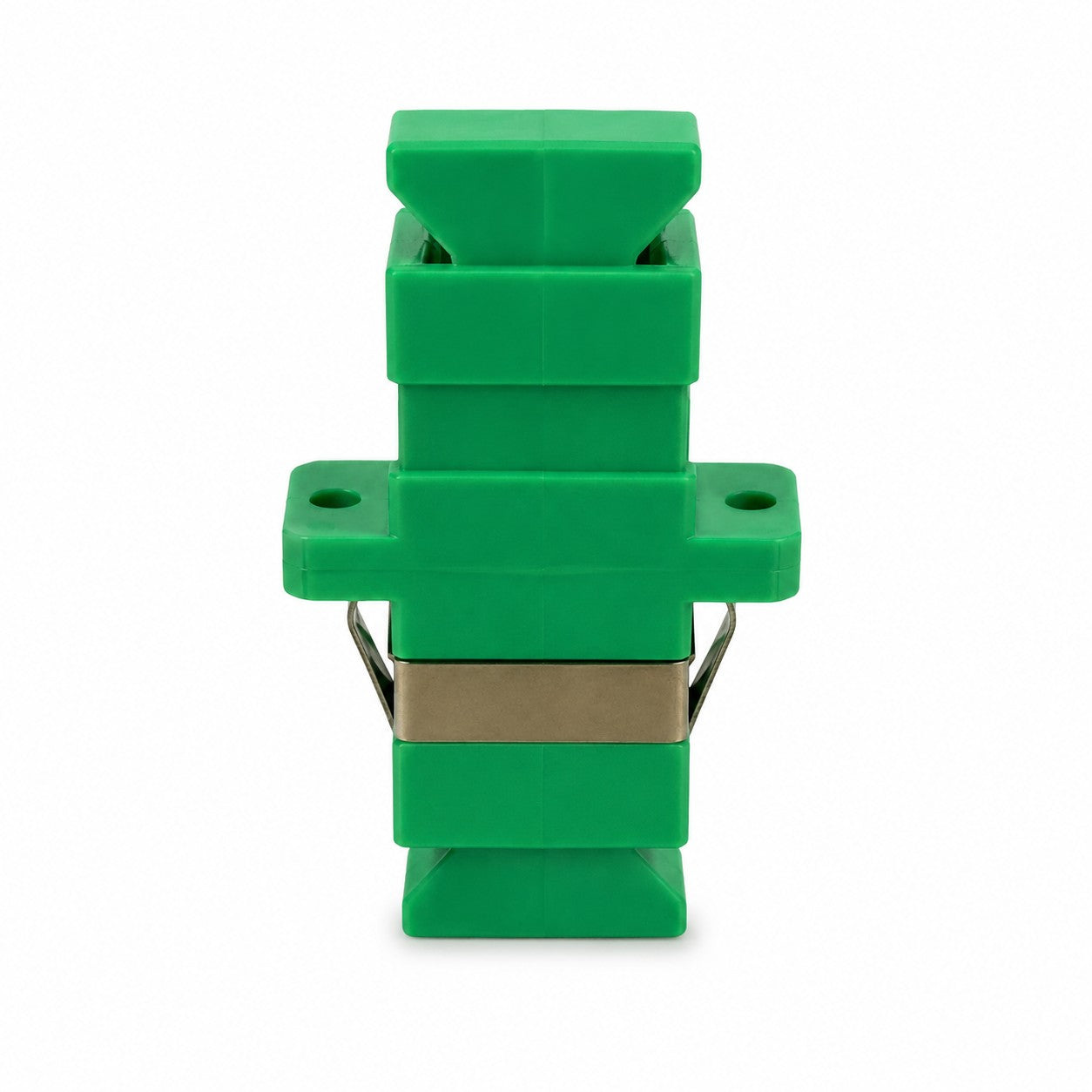

SCA SM OS1/OS2 Simplex Coupler | with Flange
About this Product
Provide a secure, low-loss fibre optic connection with the SCA SM OS1/OS2 Simplex Coupler with Flange. Designed for single mode fibre networks, this high-performance coupler joins two SC/APC simplex fibre patch leads while maintaining excellent optical signal integrity.
Manufactured with a precision ceramic alignment sleeve, the coupler delivers accurate fibre alignment, low insertion loss and dependable long-term performance. The integrated flange mounting design allows secure installation into fibre patch panels, wall outlets, termination boxes and distribution enclosures, making it ideal for professional telecommunications and enterprise network installations.
Suitable for OS1 and OS2 single mode fibre, this coupler is commonly used in FTTH, data centres, telecommunications, security networks, enterprise cabling and industrial fibre applications where reliable connectivity is essential. It complies with recognised fibre adaptor standards and is manufactured using RoHS-compliant materials for dependable operation in demanding environments.
Key Features
- High-performance SC/APC Simplex to SC/APC Simplex fibre coupler
- Supports OS1 and OS2 Single Mode fibre
- Integrated flange mount for secure panel installation
- Precision ceramic alignment sleeve for accurate fibre alignment
- Low insertion loss for maximum optical performance
- Excellent repeatability and connection stability
- Durable, corrosion-resistant construction
- Suitable for patch panels, wall outlets and fibre enclosures
- RoHS compliant materials
- Ideal for professional telecommunications and enterprise networks
Specifications
| Specification | Details |
|---|---|
| Connector Type | SC/APC Simplex |
| Fibre Type | Single Mode (OS1/OS2) |
| Configuration | Simplex |
| Mounting | Flange Mount |
| Alignment Sleeve | Precision Ceramic (Zirconia) |
| Insertion Loss | Typical ≤0.1 dB |
| Maximum Insertion Loss | ≤0.2 dB |
| Operating Temperature | -40 °C to +75 °C |
| Storage Temperature | -40 °C to +85 °C |
| Housing Material | High-impact thermoplastic |
| Compliance | IEC Fibre Adapter Standards, RoHS Compliant |
Applications
- Fibre patch panels
- Telecommunications networks
- Data centres
- Enterprise LAN & WAN infrastructure
- FTTH (Fibre to the Home)
- Fibre distribution enclosures
- Security and surveillance networks
- Industrial fibre installations
- Campus backbone networks
- Network equipment cabinets
