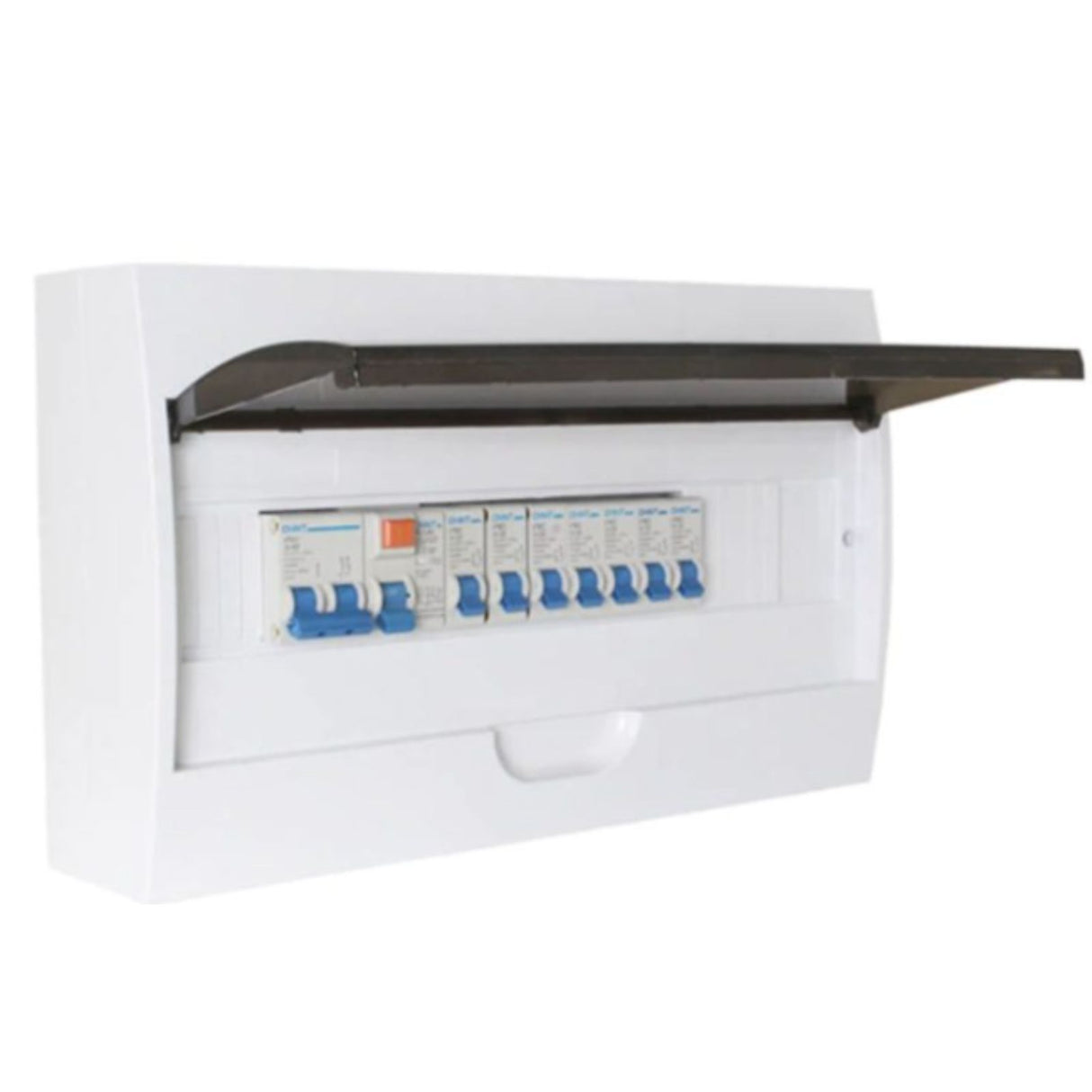

Switchboard 12 Pole | Surface Mount | 1P Rated

The 12 Pole Surface Mount Switchboard is a durable and compact enclosure designed to house circuit protection devices such as MCBs, RCBOs, and other modular switchgear. Ideal for residential, commercial, and light industrial installations, this switchboard provides safe and organized electrical distribution.

Engineered for surface mounting, it allows easy access for installation and maintenance, while its tough, insulated construction ensures protection against dust, debris, and incidental contact. With pre-configured DIN rail mounting and neutral/earth bars included, this unit simplifies circuit wiring and enhances system integrity.

Key Features:

• 12 Pole Capacity: Accommodates up to 12 single-pole devices or equivalent combinations

• Surface Mount Design: Quick to install on walls or panels

• Pre-installed DIN Rail: Easy mounting for MCBs, RCBOs, timers, and other modules

• Neutral & Earth Bars: Pre-installed for streamlined wiring

• Strong Insulated Housing: Durable, non-conductive construction for safety

• Flush Lockable Door: Secure access and neat appearance

• Compliant with AS/NZS Standards: Meets Australian safety and installation codes

• Versatile Application: Suitable for homes, offices, shops, and light industrial settings

Specifications:

• Number of Poles: 12

• Mounting Type: Surface mount

• DIN Rail: Standard 35mm DIN rail fitted

• Material: Flame-retardant ABS or polycarbonate body

• Ingress Protection: IP40–IP66 (model dependent)

• Colour: White or grey

• Dimensions (approx.): 250 mm (W) × 200 mm (H) × 100 mm (D)

• Cable Entry: Multiple knockouts (top, bottom, rear)

• Standards: AS/NZS 61439, AS/NZS 3000 compliant
