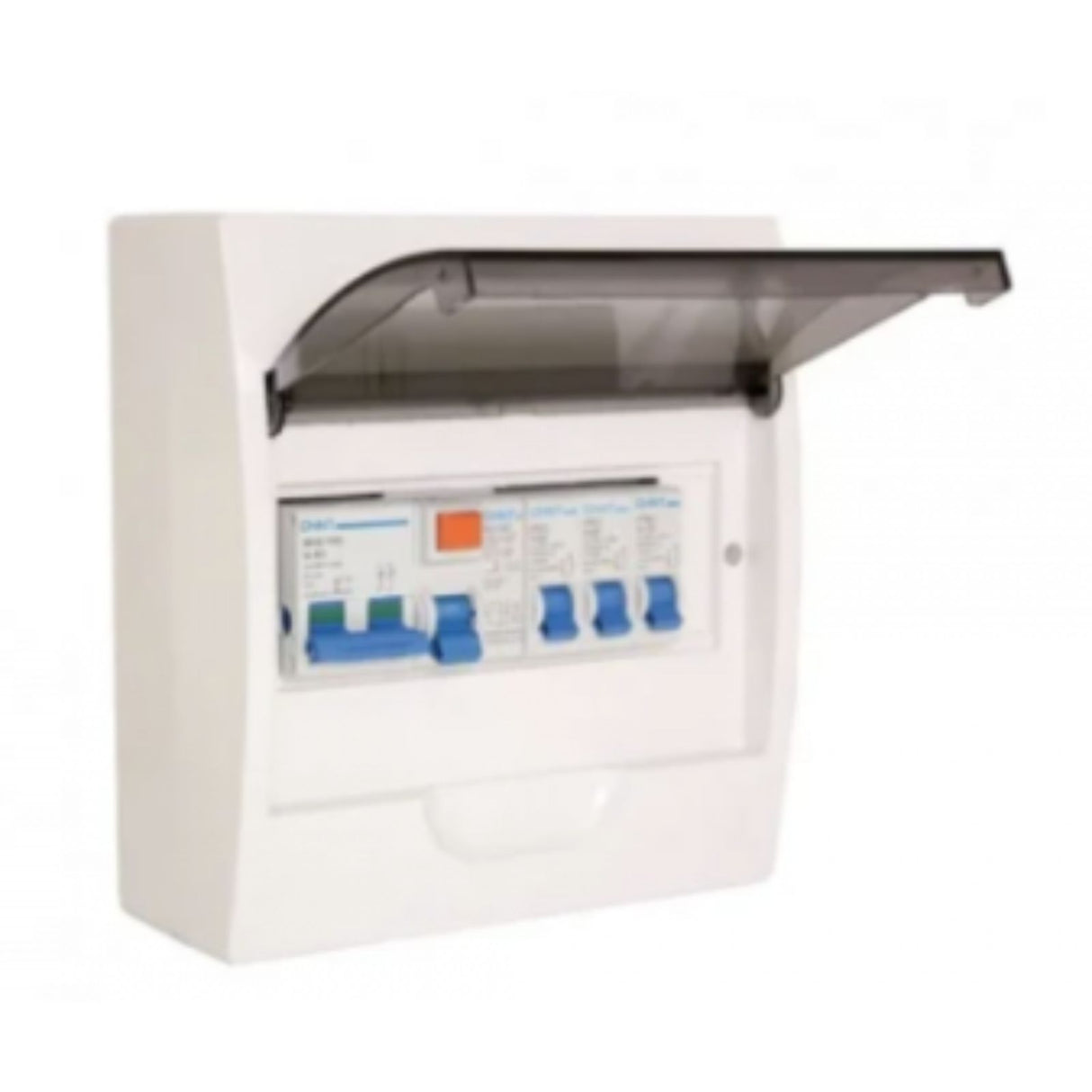

Switchboard 8 Pole | Surface Mount | IP Rated

The 8 Pole Surface Mount Switchboard is a compact and durable solution for organising and protecting electrical circuits in residential, commercial, or light industrial installations. Designed for easy surface mounting, this switchboard accommodates up to 8 single-pole circuit protection devices, including MCBs, RCBOs, and timers.

Built from high-quality, impact-resistant materials, the enclosure offers safety and convenience, with pre-fitted DIN rail, neutral and earth bars, and multiple cable entry points. It provides a clean and secure method for distributing power within any low-voltage electrical system.

Key Features:

• 8 Pole Capacity: Houses up to 8 modules or equivalent combinations

• Surface Mount Design: Easily mounted to any flat surface

• Integrated DIN Rail: Suits standard 35mm DIN-mounted devices

• Neutral & Earth Bars Included: Streamlines wiring and improves safety

• Impact-Resistant Casing: Provides protection and durability

• Secure Cover: Lockable or latched cover for safety and accessibility

• Multiple Knockouts: Flexible cable entry from top, bottom, or rear

• Standards Compliant: Conforms to AS/NZS 3000 & AS/NZS 61439

Specifications:

• Number of Poles: 8

• Mounting Type: Surface mount

• DIN Rail: 35mm pre-installed

• Material: Flame-retardant ABS or polycarbonate

• Ingress Protection: Typically IP40 to IP66 (check model variant)

• Dimensions (approx.): 200 mm (W) × 180 mm (H) × 95 mm (D)

• Cable Entry: Top, bottom, rear knockouts

• Colour: White or light grey

• Compliance: AS/NZS certified for use in Australia and New Zealand
